Repair
Repair Price: $ 504.00
Purchase
CSL Part Number: 914

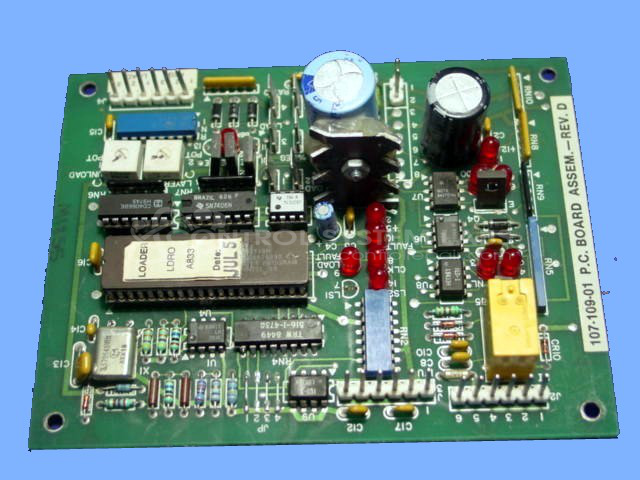

Product Overview: The Conair 107-109-01 loader control board is designed for the Selectronic 4 and Selectronic 4+ material conveying systems used in plastics processing. It controls vacuum loaders that transport plastic resin pellets or regrind from storage hoppers to processing equipment such as injection molding machines and extruders. The board manages loading cycles, coordinates multiple loaders in a system through sequencing signals, and includes four configurable jumpers to set operational modes for integral motors, preset loading/unloading times, powder loader vibrators, and discharge valve states. It features an 8748 microprocessor for timing and logic control, relay outputs for vacuum and material valves, and input/output connections for system communication and demand signaling.
Category: Hopper / Loader / Mixer / Controls
Manufacturer: Conair
Manufacturer Synonyms: IPEG, Franklin
Manufacturer Part Number: 107-109-01
Series: Selectronic 4 Loading System
Also Known As(AKA): 10710901
Common Failures
Common issues observed in these units include failure to pass signals between loaders, simultaneous loading causing operational conflicts, and non-functional components such as fuses, comparators, and diodes. These failures can lead to system inefficiencies like vacuum loss or inability to start a cycle.
Repair Approach
Repair strategies may include replacing defective components such as fuses, diodes, and comparators. Preventative maintenance including replacing capacitors and checking solder joints is commonly performed. Diagnostic testing is used to evaluate the functionality of the unit and identify unresponsive components.
Testing & Quality
Testing is conducted to evaluate repaired units. This may include burn-in tests with load to validate the repaired components under operational conditions. Each unit is subjected to a standard testing procedure to verify inputs and outputs function correctly before the unit is returned.
Service and repair your broken Conair part
We can repair your Conair model 107-109-01 in our facility. Let our skilled technicians get your Conair back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
