Repair
Repair Price: $ 994.00
Purchase
CSL Part Number: 110593

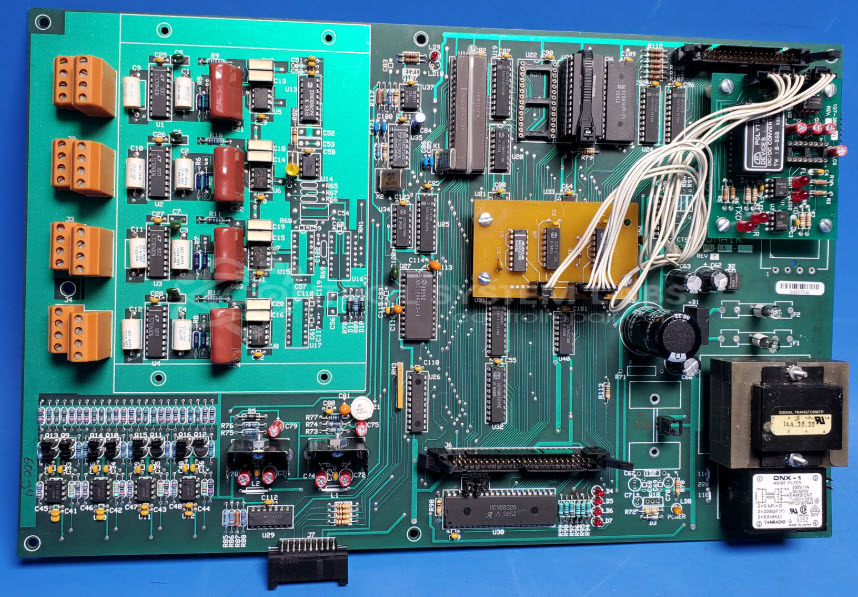

Product Overview: The Gravicon Process Board with Communication Board is a main processor unit used in Conair industrial control systems for plastics processing equipment. It integrates process control logic with communication capabilities via an onboard communication card and includes a watchdog timer for system monitoring. The board manages multiple I/O ports (J-1 through J-4) and operates on +15V, -15V, and +30V power supplies. It features NVSRAM for data retention and real-time clock functionality for time-stamped operations. Commonly found in gravimetric blending and material handling systems within plastics extrusion and injection molding applications.
Category: Operator Interface
Manufacturer: Conair
Manufacturer Synonyms: IPEG, Franklin
Manufacturer Part Number: 614-190-03 W/107-386-01
Common Failures
This product has experienced recurring issues related to the process control board, particularly with EE-prom errors. The system has reported U36 EE-prom errors that persisted even after component replacement.
Repair Approach
Diagnostic testing identified multiple defective components. Repair operations included programming and replacing components such as the EE-prom and the 74hct02 on the watchdog board, along with programming customer-specific configurations as needed.
Testing & Quality
The repaired units underwent diagnostic testing, including burn-in tests with and without load. These measures help verify that the boards are functional before being returned to service.
Service and repair your broken Conair part
We can repair your Conair model 614-190-03 W/107-386-01 in our facility. Let our skilled technicians get your Conair back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
