Repair
Repair Price: $ 1,008.00
Purchase
CSL Part Number: 33272

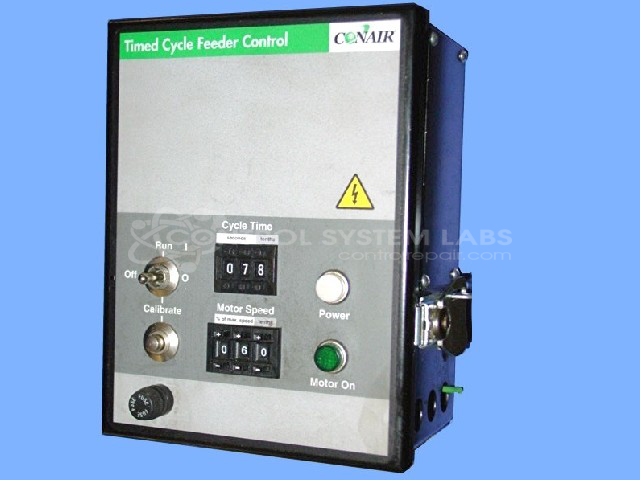

Product Overview: A timed cycle feeder control that regulates additive metering by setting motor cycle times via thumbwheel inputs. Designed for additive metering units in plastics and paper processing, it governs feeder motor operation with relay-driven output, adjustable power potentiometer, and a calibrate function.
Category: Operator Interface
Manufacturer: Conair
Manufacturer Synonyms: IPEG, Franklin
Manufacturer Part Number: 614-223-01
Also Known As(AKA): 61422301
Common Failures
Some recurring issues identified in the repair history include poor connection to the output power, failed relays, faulty fuse holders, and shorted diodes. Additional problems such as poor solder joints on the motor board and malfunctioning motor speed components have also been noted.
Repair Approach
Repairs typically involve correcting poor connections and resoldering faulty joints. Components such as crimp connectors, relays, fuse holders, sockets, thumbwheels, and diodes are commonly replaced. Precautionary replacements of capacitors are also performed. Units are thoroughly cleaned and tested after repairs.
Testing & Quality
After servicing, each unit undergoes rigorous testing, including functionality checks and overnight burn-in tests.
Service and repair your broken Conair part
We can repair your Conair model 614-223-01 in our facility. Let our skilled technicians get your Conair back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
