Repair
Repair Price: $ 994.00
Purchase
CSL Part Number: 36495

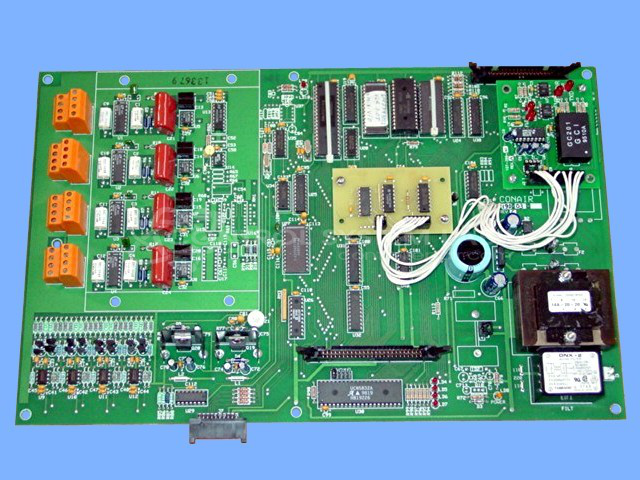

Product Overview: The Gravicon Process Board with Communication Board is a main processor assembly used in Conair material handling and blending systems. It combines a central processing board with integrated communication and watchdog monitoring cards to control gravimetric feeding, material mixing, and conveying operations in plastics processing environments. The board manages process control logic, real-time monitoring, and system communication through standard industrial protocols. It features a DS1243 real-time clock IC, EPROM/EEPROM program storage, and multi-connector interfacing for I/O and peripheral devices. This assembly is commonly found in Conair's Gravicon and Conomix blending systems.
Category: Operator Interface
Manufacturer: Conair
Manufacturer Synonyms: IPEG, Franklin
Manufacturer Part Number: 61419003 W/10738641
Also Known As(AKA): 614-190-03W107-386
Common Failures
Common issues observed during evaluation include mixer logic faults, component defects such as RAM sockets with voltage irregularities, and solder joint failures on specific resistors. Missing or corrupted program chips and faulty connections that cause voltage line shorts may also be encountered.
Repair Approach
Repairs may involve resoldering connections, reprogramming EEPROMs, and replacing defective components as needed. Preventative component replacement, such as capacitors and diodes, may be recommended to support long-term stability. Voltage regulation and program chip operations are corrected using appropriate replacement parts and programming procedures aligned with established standards.
Testing & Quality
All repaired units undergo comprehensive testing procedures. These include standard keyboard and display function tests, input/output diagnostics, and real-time clock configuration. Extended burn-in testing verifies program chip functionality and real-time clock operation to confirm stable performance before the unit is returned.
Service and repair your broken Conair part
We can repair your Conair model 61419003 W/10738641 in our facility. Let our skilled technicians get your Conair back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
