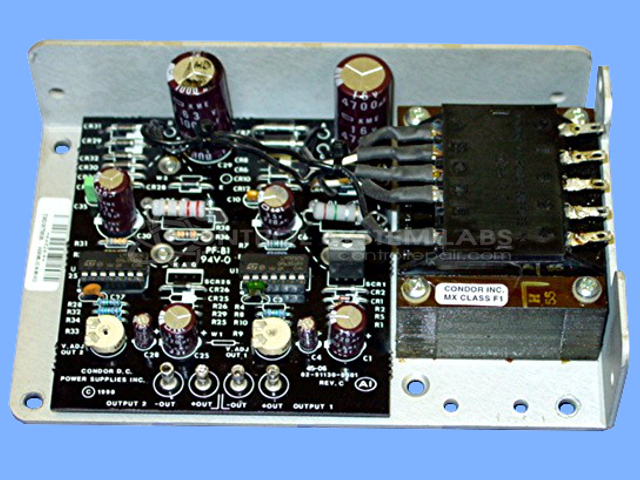

Product Overview: The Condor HAA524-A+ is a triple output linear power supply commonly used in industrial control and instrumentation systems. It provides three independently regulated DC voltage outputs from a single AC input. The design incorporates LM723 voltage regulation, SCR-based crowbar overvoltage protection, and 2N3055 power transistors for output drive. Typical applications include PLC systems, process control equipment, and other electronics requiring multiple stable DC voltages in manufacturing environments.
Category: Power Supply
Manufacturer: Condor
Manufacturer Part Number: HAA524-A+
Power supplies are tested with a minimum 4-hour burn-in, under load.
Common Failures
This product has experienced component failures, primarily involving resistors, diodes, SCRs, and transistors. Common symptoms include overheating and short circuits, especially affecting the 2N3055 transistor and the crowbar circuit's SCR.
Repair Approach
The repair process typically involves replacing defective diodes, transistors, and SCRs. Special attention is given to ensuring there are no short circuits in the crowbar circuit, and nearby components are inspected for integrity. Initial power-ups are monitored carefully, as underlying issues must be fully resolved to prevent shorts.
Testing & Quality
Units undergo testing, including as-received inspections and burn-in tests with loads. Final testing confirms repair outcomes with quality checks to ensure components function properly before units are returned.
Service and repair your broken Condor part
We can repair your Condor model HAA524-A+ in our facility. Let our skilled technicians get your Condor back in operation quickly.
