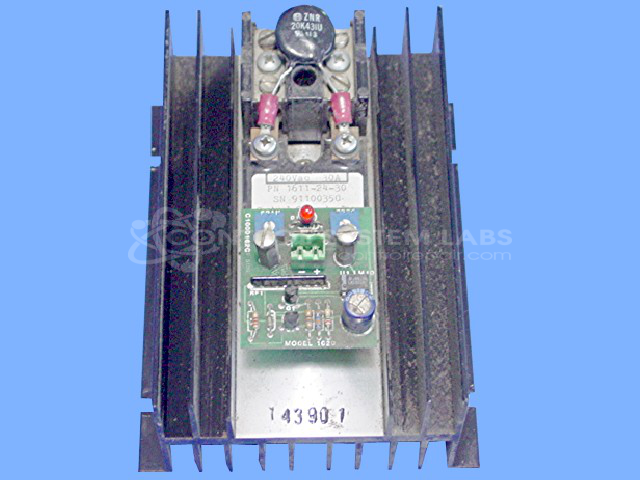

Control Concepts 3020-24-30-4/20MA SCR 30AMP Power Control

Repair

Repair Price: $ 344.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/80057/image_1920?unique=0aef805
  • Condition

Purchase Price: $ 0.00 $ 0.00 344.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 54617
Product Overview: A single-phase SCR power controller rated for 30 amps, regulating AC power to resistive or inductive loads using a 4-20mA analog input signal. Commonly used for electric heating element control in industrial process and thermal applications. Supports two-module operation for multi-zone configurations.
Category: Power Controls
Manufacturer: Control Concepts
Manufacturer Synonyms: C3 Controls
Manufacturer Part Number: 3020-24-30-4/20MA
Series: 3020 Power Controller

Common Failures

This product commonly experiences issues related to solid-state relay (SSR) failure and damaged input terminals. These conditions can affect unit operation.

Repair Approach

The repair process typically involves cleaning the control unit and replacing damaged components, such as input terminals, capacitors, and the SSR, as identified during evaluation.

Testing & Quality

Following repair, the product undergoes a comprehensive burn-in period of 72 hours to verify that replaced components function correctly and to confirm overall unit reliability.

Service and repair your broken Control Concepts part


We can repair your Control Concepts model 3020-24-30-4/20MA in our facility. Let our skilled technicians get your Control Concepts back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
