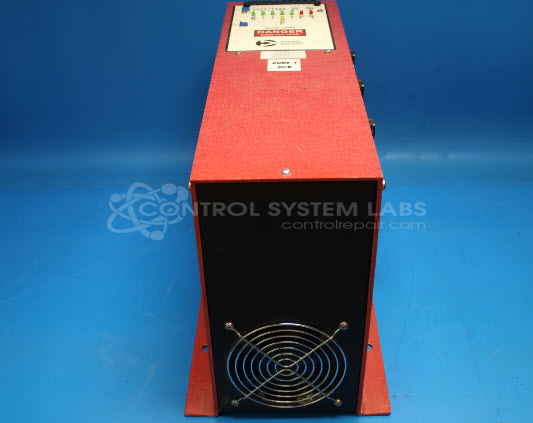

Control Concepts 3629C-V-480V-160A-4/20MA SCR Power Controller 480 VAC 160 Anps, 4-20 mA
Repair
Repair Price: $ 2,688.00
Purchase
CSL Part Number: 85592
Product Overview: A phase-angle SCR power controller rated for 480 VAC at 160 amps, regulating power to resistive and inductive loads via a 4-20 mA analog control signal. Commonly used in industrial heating, furnaces, and process control systems. Features current and overcurrent limiting, zero and span adjustment, and a ready-status output.
Category: Power Controls
Manufacturer: Control Concepts
Manufacturer Synonyms: C3 Controls
Manufacturer Part Number: 3629C-V-480V-160A-4/20MA
Series: 3629C Power Controller-Phase Angle
Common Failures
Several units experienced issues with current limiting, where the current limit was unresponsive or inaccurately set. Common symptoms included current limits being stuck or unable to adjust beyond certain voltages. Another issue was oxidation within input connectors leading to shorted pins and compromised control signals.
Repair Approach
Repairs involved cleaning and tightening connections, alongside replacing affected components, such as optocouplers, operational amplifiers, and other control circuit components. Preventative component replacements, including electrolytic capacitors, were also performed to support stability and reliability.
Testing & Quality
Post-repair, units were subjected to verification tests, including burn-in tests with loads over a period of two hours. Standard control limits were reinstated and verified. Huntron pattern analysis was used to verify component integrity post-replacement. Units were returned for customer testing, as testing at the full operational current range was not available in-house.
Service and repair your broken Control Concepts part
We can repair your Control Concepts model 3629C-V-480V-160A-4/20MA in our facility. Let our skilled technicians get your Control Concepts back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
