Repair
Repair Price: $ 3,724.00
Purchase
CSL Part Number: 85593

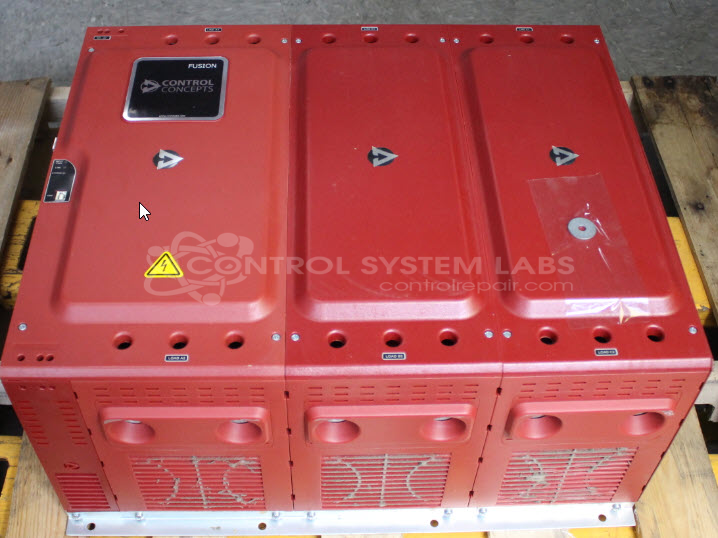

Product Overview: The Control Concepts Fusion PA-3 is a three-phase SCR power controller rated for 24-600V input and 500A output capacity. It provides precise power control for resistive heating loads in industrial applications such as plastics processing, packaging equipment, and industrial ovens. The controller features multiple communication options including RS232 and optional EtherNet/IP connectivity, digital and analog inputs for setpoint control, and built-in diagnostics accessible through manufacturer software. It uses gate-controlled SCR modules with cooling fans and internal power supplies for control circuitry.
Category: Power Controls
Manufacturer: Control Concepts
Manufacturer Synonyms: C3 Controls
Manufacturer Part Number: Fusion PA-3-AAA0-0000-0000
Series: Fusion Power Controller
Common Failures
During evaluation, we have observed issues such as burnt pins on power supply connectors, defective or loose connectors, capacitors with high equivalent series resistance (ESR), and defective solder joints. Loose hardware and burnt components such as USB connectors and fans may also be found.
Repair Approach
Typical repairs may involve replacing defective connectors, capacitors, and fans, and securing any loose components. For units with Ethernet/IP functionality, new option cards and mounting hardware can be installed when requested. Any defective or corroded components are replaced as needed, and unit cleaning is performed as part of the repair process.
Testing & Quality
Following repair work, each unit undergoes testing. This includes communications testing with RS232 or Ethernet/IP protocols, digital and analog input verification, and burn-in tests under various load conditions to verify stability and performance. Testing is performed to confirm proper operation before the unit is returned.
Service and repair your broken Control Concepts part
We can repair your Control Concepts model Fusion PA-3-AAA0-0000-0000 in our facility. Let our skilled technicians get your Control Concepts back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
