CSL Part Number: 86610

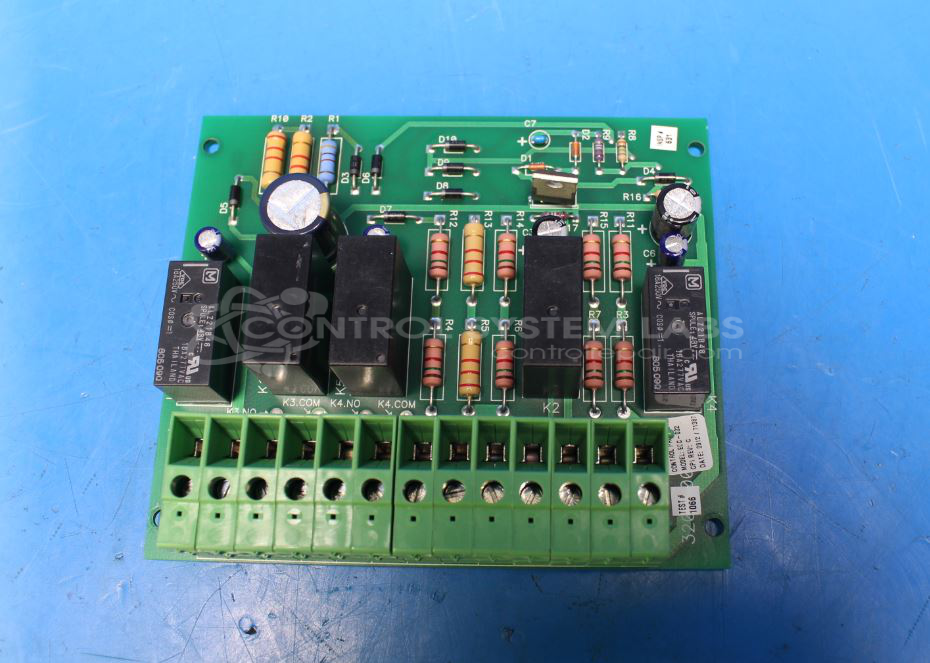

Product Overview: The Control Products EDC-002 is a control board used in burner management and combustion control systems. It provides relay-based switching logic for valve proving systems and overtemp control applications, commonly found in industrial heating equipment and boiler installations. The board operates on 120VAC input power and uses multiple DPDT relays energized at 60VDC to control safety interlocks and sequencing functions. Key components include an SCR for power control, electrolytic filter capacitors for DC power supply regulation, and sealed miniature power relays rated for 10A switching.
Category: Control Board
Manufacturer: Control Products
Manufacturer Part Number: EDC-002
Also Known As(AKA): 3207A000
Common Failures
Frequent issues with this control board include failure of electrolytic capacitors and relays. Capacitor C3 and relay K2 have been identified as components that may require replacement during repair.
Repair Approach
Repairs typically involve replacing faulty components such as capacitors and relays. Depending on the findings during evaluation, we may replace multiple electrolytic capacitors to support long-term reliability. Any damage on the board is addressed as part of the repair process.
Testing & Quality
Each repaired control board undergoes testing to verify functionality. Testing includes checking components and powering on the unit to confirm proper operation. The testing process is performed to help ensure that the board meets operational standards before it is returned.
Service and repair your broken Control Products part
We can repair your Control Products model EDC-002 in our facility. Let our skilled technicians get your Control Products back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
