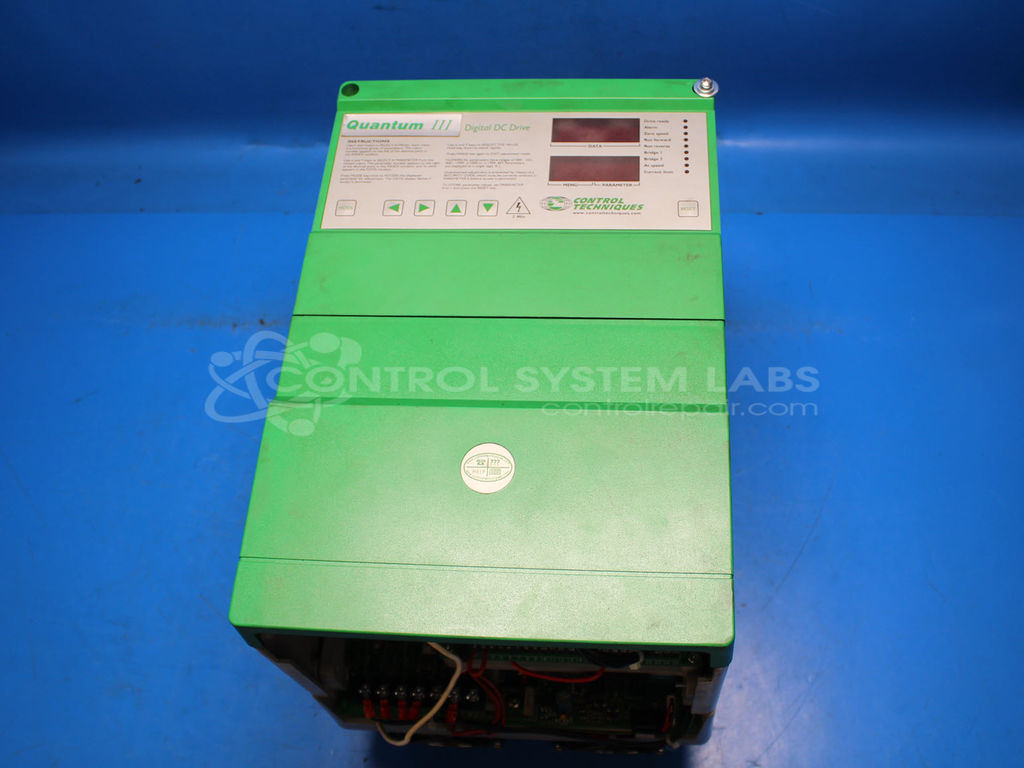

Control Techniques 9500-8606 Quantem III DC Digital DC Drive 100 HP
Repair
Call for price
Purchase
CSL Part Number: 87610
Category: DC Motor Controls
Manufacturer: Control Techniques
Manufacturer Part Number: 9500-8606
Also Known As(AKA): M210R-14ICDQ
Common Failures
Common issues reported include units that will not power on, with the display remaining off and the left fuse blowing on the SMPS board.
Repair Approach
The repair process typically involves inspection and component-level evaluation. Repairs may include replacement of capacitors, fuses, and standoffs between boards. Structural repairs such as addressing broken board mounts and hinges may also be performed as needed.
Testing & Quality
Following repair, units are tested by applying 480 VAC 3-phase power, connecting field and armature inputs, and verifying DC and field supplies. Functional fans and armature output presence are verified. Please note that extended testing may be limited by feedback-related conditions. We recommend that customers verify wiring and connections upon installation to ensure proper operation.
Service and repair your broken Control Techniques part
We can repair your Control Techniques model 9500-8606 in our facility. Let our skilled technicians get your Control Techniques back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
