Repair
Repair Price: $ 1,476.00
Purchase
CSL Part Number: 76741

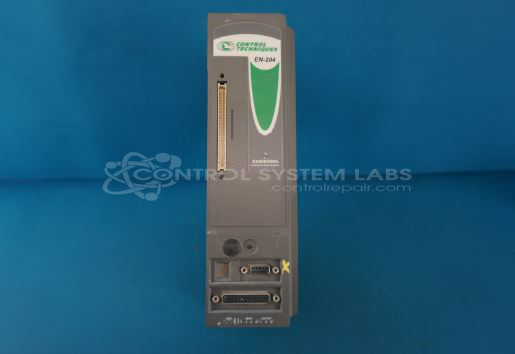

Product Overview: The Control Techniques EN-204 is an AC digital servo drive rated for 4.5 amps RMS continuous output. Part of the EN Series, it provides precise motion control for servo motor applications in industrial automation systems. This drive features digital control architecture and programmable parameters for velocity, positioning, and torque control. Commonly found in packaging machinery, printing equipment, and paper handling systems, it interfaces with control systems via serial communications and operates with compatible AC servo motors for demanding motion control tasks.
Category: Servo Controls
Manufacturer: Control Techniques
Alternate Manufacturer Names: NIDEC, Emerson
Manufacturer Part Number: EN-204
Series: EN Series Servo Drive
Also Known As(AKA): EN-204-00-000, 960500-10 Rev A3
Other Synonyms: NIDEC, Emerson
We can repair your EN-204 drive and run in our test bench.
Common Failures
The primary issue identified in the repair history is defective capacitors, which are a common failure point in these products. This issue can affect the performance of both the power board and control board.
Repair Approach
The repair process typically involves replacing defective aluminum electrolytic capacitors on both the power board and control board as needed. Following the replacement, the unit undergoes thorough cleaning. Programs are backed up when possible and restored to preserve customer-specific configurations.
Testing & Quality
Diagnostic testing is conducted post-repair to verify functionality, including communication checks and motor burn-in tests where applicable. These tests evaluate whether the system operates correctly, maintains consistent communication, and performs under different operational conditions.
Service and repair your broken Control Techniques part
We can repair your Control Techniques model EN-204 in our facility. Let our skilled technicians get your Control Techniques back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
