Home >  Control Techniques EN-208 AC Digital Servo Drive 9 Amps RMS

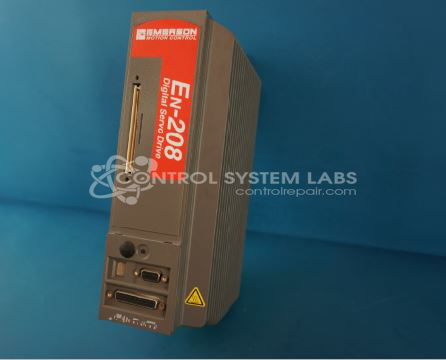

Control Techniques EN-208 AC Digital Servo Drive 9 Amps RMS

Repair

Repair Price: $ 2,276.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/97048/image_1920?unique=7ab8cb1
  • Condition

Purchase Price: $ 0.00 $ 0.00 2276.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 76699
Product Overview: A programmable AC digital servo drive rated at 9 amps RMS, operating from 240 VAC and controlling brushless servo motors via resolver feedback. Supports velocity, torque, and pulse modes with PC-based configuration and onboard I/O. Commonly used in indexing and motion applications such as paper-handling and paddle-wheel equipment.
Category: Servo Controls
Manufacturer: Control Techniques
Alternate Manufacturer Names: NIDEC
Manufacturer Part Number: EN-208
Series: EN Series Servo Drive
Other Synonyms: NIDEC

Common Failures

This product has experienced recurring issues with capacitor failures on the control and main boards. Customers have also reported problems such as the device not accepting programs, erratic drive outputs, or drive faults with error codes.

Repair Approach

The repair approach may include replacing defective capacitors, reloading customer programs, and updating internal configurations to address issues related to invalid or mismatched settings. Potential software configuration mismatches are identified and corrected by reprogramming with the correct parameters.

Testing & Quality

Post-repair, units undergo comprehensive testing. The procedure includes verifying motor output, executing commands through PC interface, and ensuring correct operation in various modes. Devices are tested in both directions over multiple power cycles to confirm stability, and customer programs are reloaded to verify functionality.

Service and repair your broken Control Techniques part


We can repair your Control Techniques model EN-208 in our facility. Let our skilled technicians get your Control Techniques back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
