Repair
Repair Price: $ 2,212.00
Purchase
CSL Part Number: 71180
Product Overview: The Control Techniques EN-214-00-000 is a three-phase AC digital servo drive rated for 13 amps RMS continuous output (15 amps peak). It operates on 240 VAC input and provides variable frequency output (0-900 Hz) for servo motor control at 50/60 Hz line frequency. This drive is part of the EN Series and is commonly used with XV and NTM series servo motors in motion control applications requiring precise speed and position control. It features RS-232 communications, programmable I/O, analog speed control inputs, and integrated encoder feedback processing for closed-loop servo operation.
Category: Servo Controls
Manufacturer: Control Techniques
Alternate Manufacturer Names: NIDEC
Manufacturer Part Number: EN-214-00-000
Series: EN Series Servo Drive
Other Synonyms: NIDEC

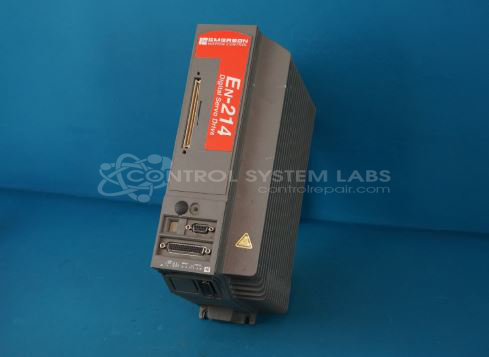

We can repair your EN-214 drive and run in our test bench. FM-4 module shown is extra
Common Failures
The Emerson Motion Control Servo Drive model EN214 has been observed to experience issues such as defective power modules and capacitors, firmware corruption, and defective communication components. Problems reported have included scrambled LED displays, failure to power up, connectivity issues with PCs, and improper motor operation.
Repair Approach
Repairs have involved replacing defective components such as power modules, capacitors, fans, SRAM chips, and RS-232 chips. In some cases, firmware reinstallation and motor wiring corrections were performed. Preventative replacements of capacitors and fans have been carried out to address potential future failures.
Testing & Quality Assurance
Testing followed each repair, including burn-in tests with servo motors, LED display checks, and communication testing with ProTools FM software. Units underwent extended running tests, verifying functionality in both forward and reverse directions.
Service and repair your broken Control Techniques part
We can repair your Control Techniques model EN-214-00-000 in our facility. Let our skilled technicians get your Control Techniques back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
