Repair
Repair Price: $ 994.00
Purchase
CSL Part Number: 85866

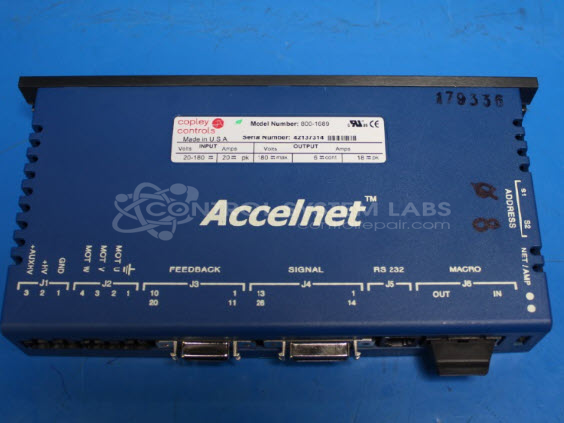

Product Overview: The Copley Controls Accelnet 800-1689 is a compact DC servo drive rated for 180VDC input and 3A continuous output. It belongs to the Accelnet MACRO series and provides precise motion control for servo motors in industrial automation systems. This drive is commonly found in waterjet cutting machines (such as Flow Mach 3 and Mach 4 models) and other CNC equipment requiring multi-axis servo positioning. It features RS-232 communication, digital I/O, encoder feedback support, and optional fiber optic networking for multi-drive configurations. The unit uses modular power supply and control circuits with surface-mount construction.
Category: Servo Controls
Manufacturer: Copley Controls
Manufacturer Part Number: 800-1689
Series: Copley Accelnet Series
Common Failures
Units may experience issues related to power supply components or other internal parts. Common symptoms have included failure to power on, power-related error messages, or drive fault indications. Component-level failures such as capacitor degradation or processor overheating have been observed in some cases.
Repair Approach
Repair typically involves component-level replacement of defective parts, which may include capacitors, DC-DC converters, transistors, or diodes as identified during evaluation. Preventative component replacement at known failure points may also be performed when appropriate. PCB rework, including trace repair or pad replacement, is completed as needed.
Testing & Quality Assurance
Repaired units are subject to diagnostic testing to verify power supply stability and communication functionality. Extended run testing may be performed to evaluate reliability under operational conditions. Testing procedures are conducted according to CSL standards to confirm that units meet expected performance criteria before return to service.
Service and repair your broken Copley Controls part
We can repair your Copley Controls model 800-1689 in our facility. Let our skilled technicians get your Copley Controls back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
