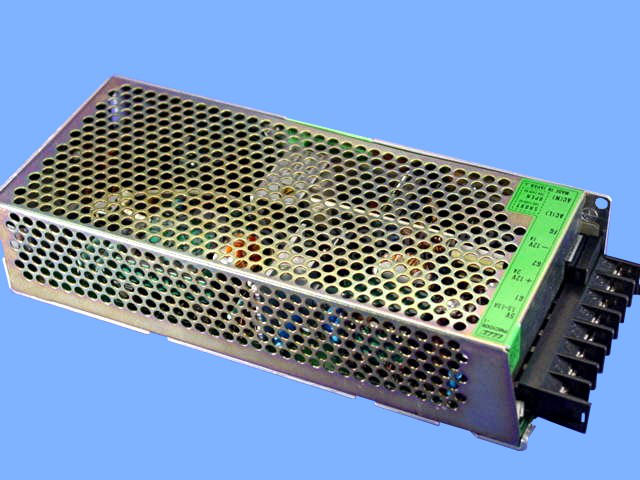

Cosel PMC100E-1 Triple Switching Power Supply 5VDC +/-12VDC

Repair

Repair Price: $ 444.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/38452/image_1920?unique=2f2c95b
  • Condition

Purchase Price: $ 0.00 $ 0.00 444.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 19252
Product Overview: A triple-output switching AC-DC power supply delivering regulated 5VDC and ±12VDC outputs from a 120VAC input. Rated at approximately 100W, it supplies logic and analog circuitry in industrial control and automation equipment requiring multiple stable voltage rails.
Category: Power Supply
Manufacturer: Cosel
Manufacturer Part Number: PMC100E-1
Series: PMC Series AC-DC Power Supply

Common Failures

This product has experienced issues primarily related to the power supply. Problems include inconsistent output, no secondary voltage, and absence of the 5-volt output. Identified causes typically involve failed or leaky capacitors, as well as faulty integrated circuits.

Repair Approach

The repair approach generally involves replacing the affected capacitors and integrated circuits. Preventative replacement of certain components may also be performed. Once repairs are completed, calibration adjustments and thorough cleaning are undertaken.

Testing & Quality

Post-repair, units undergo testing under load, with burn-in periods ranging from 4 to 8 hours to verify repair success and performance reliability. This process helps ensure the product meets expected quality and operational standards before being returned to the customer.

Service and repair your broken Cosel part


We can repair your Cosel model PMC100E-1 in our facility. Let our skilled technicians get your Cosel back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
