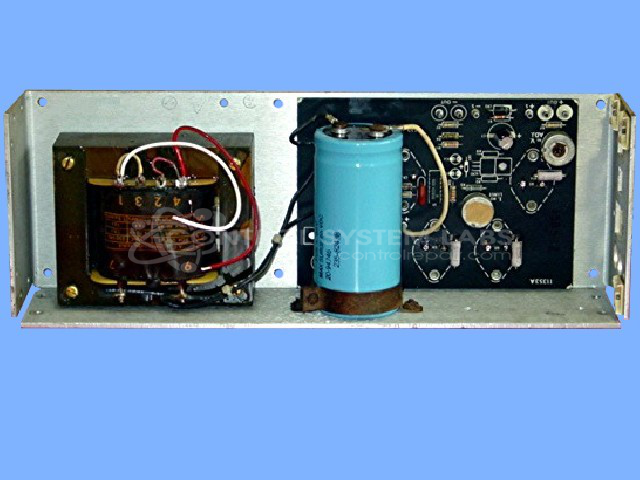

Cougar HE24-7.2 Condor 24V 7.2A DC Power Supply

Repair

Repair Price: $ 332.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/20897/image_1920?unique=0371b90
  • Condition

Purchase Price: $ 0.00 $ 0.00 332.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 990
Product Overview: A linear DC power supply delivering a regulated 24V output at up to 7.2A. It converts AC line voltage into stable DC power for industrial control systems, automation equipment, and electronic instrumentation. Output voltage is adjustable for precise calibration.
Category: Power Supply
Manufacturer: Cougar
Manufacturer Part Number: HE24-7.2
Also Known As(AKA): CONDOR

Common Failures

This product may experience issues with voltage output stability, particularly exhibiting a consistent output of 41 volts DC regardless of connected loads. Identified causes for this symptom include shorted components and burnt or broken traces.

Repair Approach

The typical repair process involves replacing shorted or damaged components, including specific transistors, rectifiers, resistors, and capacitors. Additionally, traces that are found to be broken are repaired. After component replacement, careful resoldering and cleaning are performed to ensure proper functioning.

Testing & Quality

Post-repair, the unit is adjusted to achieve a stable 24-volt output. A thorough load test is conducted to ensure reliability, followed by a burn-in process to confirm the repair quality. This rigorous testing helps ensure that the product meets performance specifications before returning to the customer.

Service and repair your broken Cougar part


We can repair your Cougar model HE24-7.2 in our facility. Let our skilled technicians get your Cougar back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
