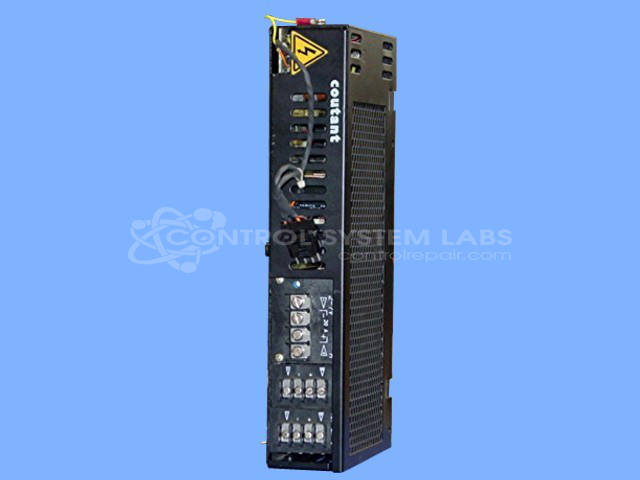

Coutant Electronics Ltd. ML150/C5 Three DC Output Power Supply
Repair
Repair Price: $ 696.00
Purchase
CSL Part Number: 71496
Product Overview: A linear industrial power supply providing three regulated DC outputs: 5VDC at 20A and two 15VDC rails at 3A each. It includes adjustable outputs and crowbar overvoltage protection, powering control electronics, instrumentation, and automation equipment.
Category: Power Supply
Manufacturer: Coutant Electronics Ltd.
Manufacturer Part Number: ML150/C5
Also Known As(AKA): LAMBDA
5VDC 20AMP/2X15VDC 3AMP POWER SUPPLY
Common Failures
Units submitted for repair have been found to exhibit no output voltage or slow or incorrect power supply voltage. These issues have been caused primarily by broken solder joints, leaky capacitors, and an open coil on the 15V board. Additionally, improper settings on the crowbar trip have been identified as a contributing factor.
Repair Approach
To address these failures, relevant electrolytic capacitors are replaced, broken solder joints are resoldered, and open coils on the 15V board are repaired as needed. Adjustments are made to correct the crowbar trip setting when required. Each unit is thoroughly tested following repairs to verify functionality.
Testing & Quality
Repaired units undergo burn-in testing for several hours under load conditions to verify stability and performance. This testing process helps ensure that the unit operates as expected before being returned to the customer.
Service and repair your broken Coutant Electronics Ltd. part
We can repair your Coutant Electronics Ltd. model ML150/C5 in our facility. Let our skilled technicians get your Coutant Electronics Ltd. back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
