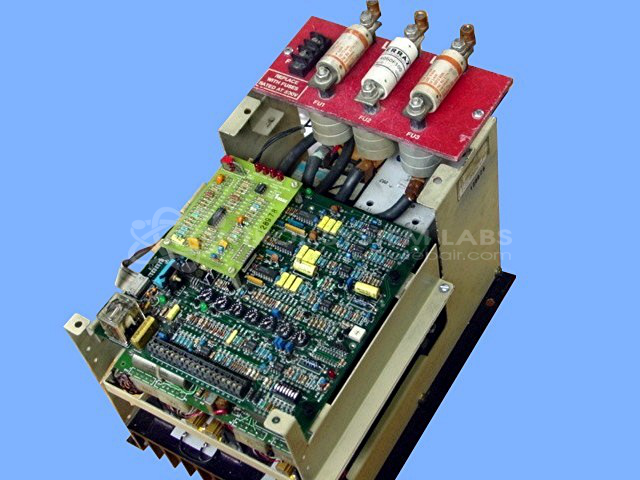

CSR Contraves A6381 G021031 Compak DC Drive 5-40HP
Repair
Repair Price: $ 2,800.00
Purchase
CSL Part Number: 949
Product Overview: A DC motor control drive rated for 5 to 40 HP, regulating armature voltage and speed for DC motors in industrial machinery. Features SCR-based power conversion, adjustable horsepower and IR compensation settings, armature contactor control, and snubber/gating circuitry for drive operation.
Category: DC Motor Controls
Manufacturer: CSR Contraves
Manufacturer Synonyms: Control Systems Research inc.
Manufacturer Part Number: A6381 G021031
Also Known As(AKA): CLEVELAND MACHINE
Common Failures
Common issues reported include shorted diode modules, armature contactors that do not stay energized, inconsistent output with flickering lights, and units that do not shut off properly. Blown fuses, defective capacitors, broken snubber leads, and damaged relay components are also frequently observed.
Repair Approach
Typical repairs may include replacing diode modules, capacitors, and relays, as well as repairing snubber leads and tightening loose connections. Cleaning relay contacts and verifying power supply operations are also common steps. Adjustments to settings, such as IR compensation and horsepower, may be made when units exhibit operational discrepancies.
Testing & Quality
Repaired units undergo testing to verify functionality, including burn-in tests ranging from 1 to 3 hours. Extended operational testing, up to 8 hours a day for 3 days, may be performed to evaluate performance stability.
Service and repair your broken CSR Contraves part
We can repair your CSR Contraves model A6381 G021031 in our facility. Let our skilled technicians get your CSR Contraves back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
