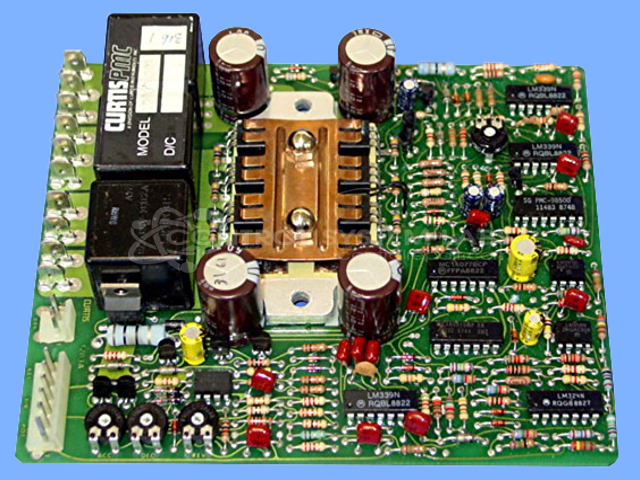

Curtis Instruments 1203A-301 1203A PMC Motor Control
Repair
Repair Price: $ 496.00
Purchase
CSL Part Number: 25534
Product Overview: A permanent magnet DC motor speed controller used in electric vehicles, material handling equipment, and industrial drive systems. It regulates motor speed and direction through solid-state switching, supporting forward and reverse operation via onboard relays.
Category: Motor Controls
Manufacturer: Curtis Instruments
Manufacturer Part Number: 1203A-301
Common Failures
Common failure modes observed during evaluation include relay-related issues affecting directional control, unauthorized modifications that may complicate evaluation or repair, and control issues related to resistor failures.
Repair Approach
When relay-related issues are identified during evaluation, replacement of the affected relays may restore functionality. For control problems related to resistors, replacing defective components and updating capacitors have been effective approaches. Units are inspected and tested following repair work.
Testing & Quality
Following repair, units undergo functional testing, which may include an extended burn-in period, to verify proper operation before return.
Service and repair your broken Curtis Instruments part
We can repair your Curtis Instruments model 1203A-301 in our facility. Let our skilled technicians get your Curtis Instruments back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
