Repair
Repair Price: $ 694.00
Purchase
CSL Part Number: 115368

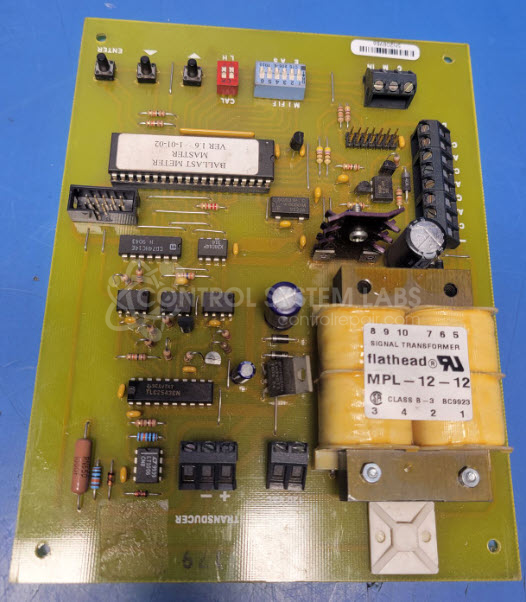

Product Overview: The Ballast Tank Level Meter Card is a custom-designed signal conditioning and data acquisition board used in marine ballast tank level monitoring systems. It accepts 120VAC input and provides regulated DC power to support analog-to-digital conversion via a 12-bit TLC2543 ADC, which interfaces with a microcontroller through optocouplers. The board processes signals from external level transducers and communicates data to a remote display unit, enabling operators to monitor ballast tank fluid levels aboard vessels and marine equipment.
Category: Meters / Gauges / Readouts
Manufacturer: Custom Electronics
Manufacturer Part Number: Ballast Meter Master
Please include manuals wiring diagrams with the item
Common Failures
Several common issues have been identified with this product, including defective or damaged components such as transformers, capacitors, voltage regulators, and resistors. External sources, like faulty connections to transducers, may also cause damage. Symptoms frequently observed include damaged transformers, bulged capacitors, and burned resistors.
Repair Approach
Repairs typically involve replacing defective components. Electrolytic capacitors are frequently replaced as a preventative measure. In some cases, further stabilization procedures, such as securing a newly installed transformer with adhesive, may be performed.
Testing & Quality
Post-repair testing involves powering the unit and verifying voltage outputs, including 5V outputs and other critical power levels across the system. Repairs undergo component testing using multimeters and other diagnostic tools to confirm functionality.
Service and repair your broken Custom Electronics part
We can repair your Custom Electronics model Ballast Meter Master in our facility. Let our skilled technicians get your Custom Electronics back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
