Repair
Repair Price: $ 2,316.00
Purchase
CSL Part Number: 101854

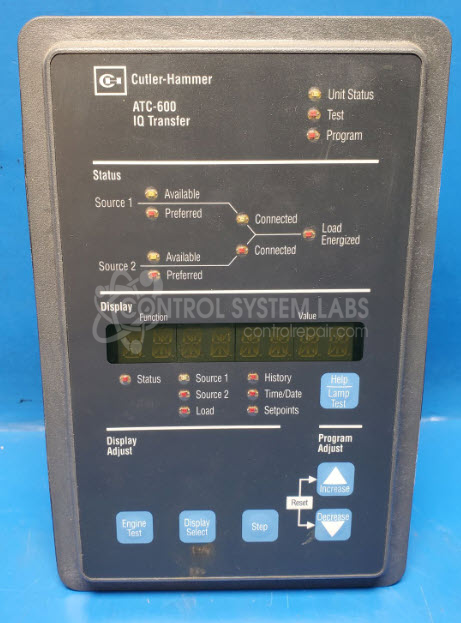

Product Overview: The ATC-600 is an automatic transfer switch controller designed to manage power transfer between utility and generator sources in standby power systems. It controls an 800-amp, 480VAC three-phase switching device with a fixed-mount molded case design. The controller monitors both preferred and alternate power sources, automatically initiating generator start and managing the transfer sequence when utility power fails or falls outside acceptable parameters. It features programmable transfer and retransfer timing, voltage sensing, and operational controls for backup power applications in commercial and industrial facilities requiring uninterrupted electrical service.
Category: Power Controls
Manufacturer: Cutler-Hammer
Manufacturer Synonyms: Eaton, Cutler-Hammer IDT
Manufacturer Part Number: ATVINBC30800XKU
Also Known As(AKA): ATC-600
ATV-Vertical Transfer Switch I-IQ Control NB-Cutler Hammer Switching Device D-Fixed Mount Molded Case 3-3 Phase 0800-800 Ampere X-480VAC/60HZ K=No Enclosure U-UL Listed
Common Failures
The product may experience issues with utility return sensing and line voltage detection, which can affect generator start and transfer behavior. Timer activation issues have also been observed in some units.
Repair Approach
Repairs typically involve component setpoint adjustment, connector replacement or tightening, and thorough inspection of solder connections. Custom connector work may be performed based on customer requirements and unit condition.
Testing & Quality
All repairs undergo relay testing to verify functionality. CSL evaluates each unit based on available test equipment and provides findings after inspection is complete.
Limited Repair
The Cutler-Hammer part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Cutler-Hammer part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
