Repair
Repair Price: $ 2,116.00
Purchase
CSL Part Number: 1003

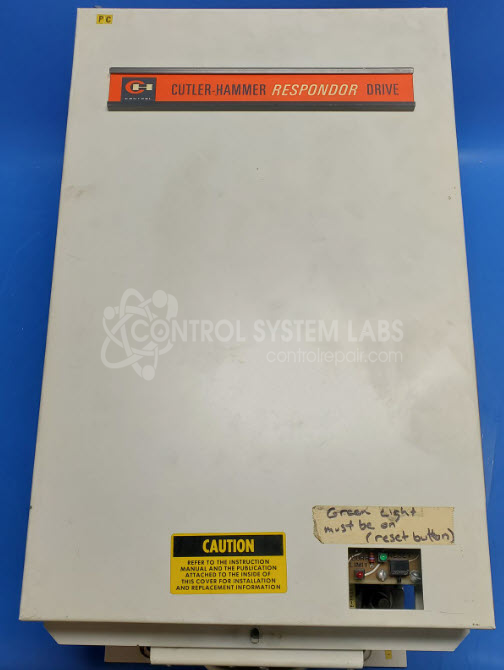

Product Overview: The Responder 210 DC Drive 105Amp is a thyristor-based DC motor controller manufactured by Cutler-Hammer. It provides closed-loop speed and torque control for DC motors in industrial applications, commonly found in paper manufacturing machinery and converting equipment. This model delivers 105 amps continuous output and uses SCR technology to regulate armature voltage and field excitation. It typically drives motors in the 20-50 horsepower range and interfaces with standard analog and digital control signals for integration into automated production lines.
Category: DC Motor Controls
Manufacturer: Cutler-Hammer
Manufacturer Synonyms: Eaton, Cutler-Hammer IDT
Manufacturer Part Number: GA210TC105-A
Series: Responder 210 DC Drive
Missing or bad fuses are not included in this repair price. Are quoted extra
Common Failures
One common symptom reported is the drive skipping during operation. This issue may be related to the drive itself or to motor-level factors, such as motor brush condition or other machine maintenance requirements. CSL evaluates the drive unit to determine whether a drive-level fault is present.
Repair Approach
Diagnostic testing is performed using advanced tools. If no faults are found in the drive itself, the issue may be related to system-level or motor-level maintenance. CSL can evaluate the drive and provide findings based on the unit received.
Testing & Quality
All units undergo thorough testing, including burn-in tests and operational verification, to ensure reliability. The units are reviewed by CSL technicians to confirm that they operate as expected.
Service and repair your broken Cutler-Hammer part
We can repair your Cutler-Hammer model GA210TC105-A in our facility. Let our skilled technicians get your Cutler-Hammer back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
