Repair
Repair Price: $ 574.00
Purchase
CSL Part Number: 1017

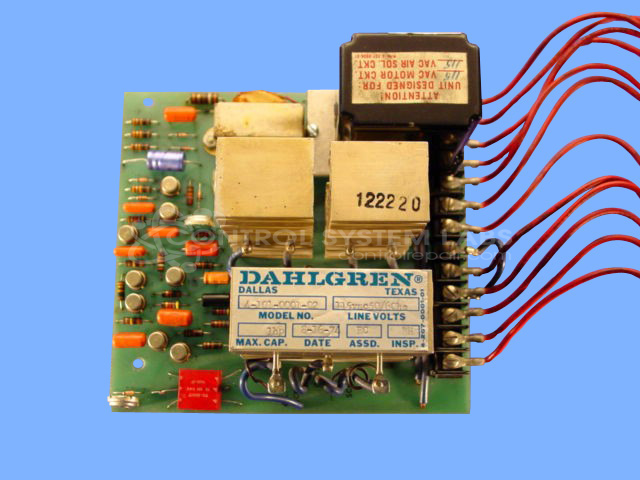

Product Overview: The Dahlgren 4-101-0001-02 is a single-phase motor control designed for AC motors up to 1 horsepower operating on 115 VAC. It provides speed control and motor protection for small industrial motors commonly found in conveyors, fans, pumps, and material handling equipment. The control uses analog circuitry with adjustable potentiometer-based speed regulation and includes protective capacitors and power resistors for reliable operation in light-duty industrial applications.
Category: Motor Controls
Manufacturer: Dahlgren
Manufacturer Part Number: 4-101-0001-02
Common Failures
Motor control unit malfunctions are among the frequently reported issues with this product, often related to capacitor or component degradation over time.
Repair Approach
Repairs typically involve replacing defective capacitors and other failed components as identified during evaluation. Additional work may include addressing resistors, connections, terminals, and related hardware to restore proper operation of the motor control unit.
Testing & Quality
Following repair work, the product is tested to verify proper operation. Testing may include burn-in procedures with the motor to confirm reliability and performance before the unit is returned.
Service and repair your broken Dahlgren part
We can repair your Dahlgren model 4-101-0001-02 in our facility. Let our skilled technicians get your Dahlgren back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
