Repair
Repair Price: $ 564.00
Purchase
CSL Part Number: 73117

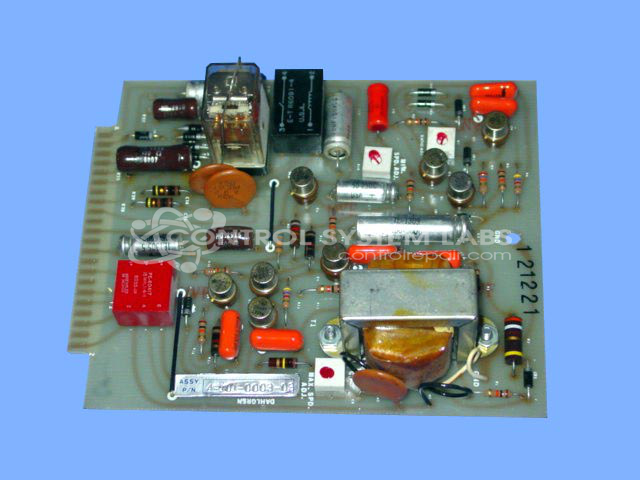

Product Overview: The Dahlgren Power Module Control Card (4-202-0002-01) is a DC motor speed controller designed to regulate motor operation through adjustable potentiometers. It controls maximum and minimum speed settings for DC motors, typically used with 90VDC motors up to 1.2 HP in industrial applications. The board interfaces with external speed control potentiometers and includes relay components for motor switching.
Category: Control Board
Manufacturer: Dahlgren
Manufacturer Part Number: 4-202-0002-01
Also Known As(AKA): 4-101-0003
Common Failures
Frequent issues with this product include visible damage such as blown components and loose or cracked solder joints. These problems often result in the motor failing to turn on or cutting out unexpectedly, especially if the unit is moved.
Repair Approach
Repairs typically involve remounting loose components to restore functionality. Additionally, a relay hold down clip is installed to enhance the stability of the components and to prevent the relay from becoming dislodged during movement.
Testing & Quality
Extensive testing is conducted to verify functionality. Each unit is subjected to continuous operation tests using a 90VDC 1.2 HP motor. This process includes verifying the proper function of speed control features to confirm that the repairs have restored operational capabilities.
Service and repair your broken Dahlgren part
We can repair your Dahlgren model 4-202-0002-01 in our facility. Let our skilled technicians get your Dahlgren back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
