Daikin DHA00196E Control Board
Repair
Call for price
Purchase
CSL Part Number: 103586

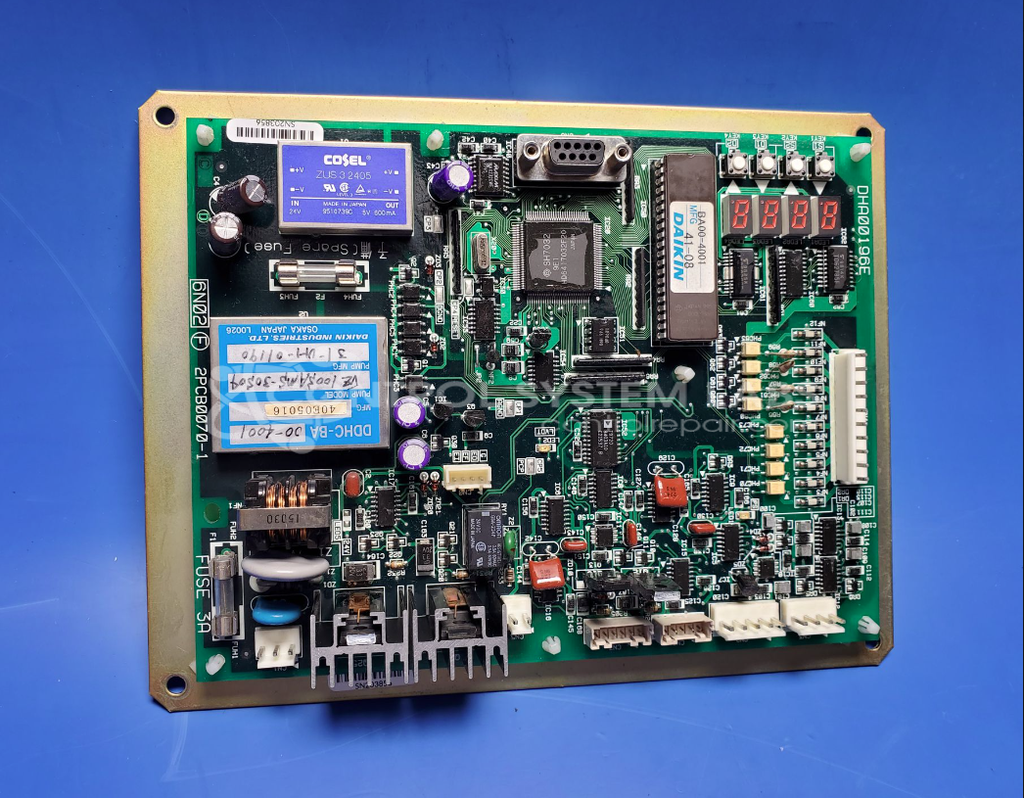

Product Overview: The DHA00196E is a Daikin control board used in commercial HVAC equipment, specifically air conditioning and heat pump systems. It manages pump operation and monitors linear variable differential transformer (LVDT) position feedback for refrigerant flow control. The board features dual diagnostic LEDs for power supply and LVDT function verification, operates on 24VDC input, and includes onboard DC-DC converters providing 5V and ±12V rails. It integrates a microcontroller with display interface and user input controls for system configuration and monitoring.
Category: Power Controls
Manufacturer: Daikin
Manufacturer Part Number: DHA00196E
Also Known As(AKA): 40E0516, DDHC-BA00-4001
Limited Repair
The Daikin part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Daikin part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
