CSL Part Number: 72939

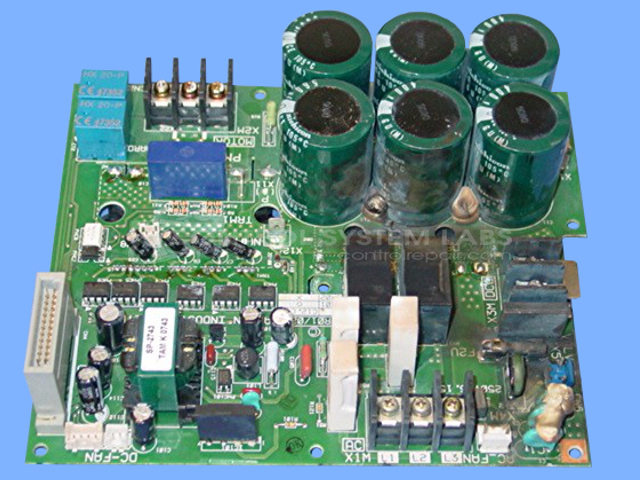

Product Overview: The Daikin PMC-04-30 is a power board used in Daikin's PMC series power motion controllers. It provides the power stage for motor control applications, commonly found in hydraulic systems and industrial automation equipment. The board uses an IGBT power module (600V 30A rated) with gate drive circuitry and optoisolators for signal isolation. It operates on three-phase 220VAC input and includes voltage sensing circuits for fault detection. This board is part of the PMC-04 controller family, working alongside control electronics to regulate motor speed and torque in precision motion control applications.
Category: Motor Controls
Manufacturer: Daikin
Manufacturer Part Number: PMC-04-30
Also Known As(AKA): DB-524-101
Please include a specific symptom and wiring diagrams/ manual for the specific unit the board is out of when sending in. If possible include the cable and board that CN4 connects to on this.
Common Failures
This product commonly exhibits an E16 error code, which may indicate an overvoltage condition. Issues can stem from components such as the IGBT module and opto isolators.
Repair Approach
Diagnosing and repairing may involve replacing the IGBT module and opto isolators. Our technicians also inspect and replace components in the sensing circuits and capacitors as needed.
Testing & Quality
Repairs are followed by diagnostic tests. The module and opto isolators are evaluated using specialized equipment to verify functionality. Operational testing is conducted to the extent possible at the component level. Final system-level testing and integration remain the customer's responsibility. Thermal compound is provided with the repair package to support proper component performance.
Limited Repair
The Daikin part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Daikin part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
