Repair
Repair Price: $ 1,972.00
Purchase
CSL Part Number: 80491

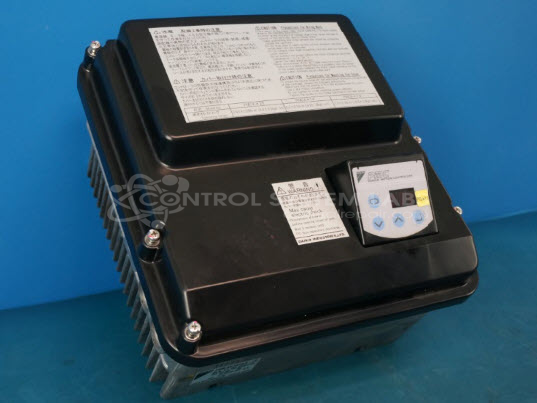

Product Overview: The Daikin PMCAE50A2-10 PMC Power Motion Controller is a control assembly commonly integrated into IPM motor drive hydraulic units such as the SUT06D40L16-20, SUT10D40L16-20, SUT06D60L21-20, and SUT10D60L21-20 models. It regulates motor control functions in hydraulic systems, monitoring main circuit voltage and managing power distribution. The controller operates with DC input circuitry and includes protective alarms for undervoltage conditions typically triggering below 190VDC or 134VAC input levels.
Category: Control Assembly
Manufacturer: Daikin
Manufacturer Part Number: PMCAE50A2-10
Also Known As(AKA): 11-32-000775
Common Failures
The unit may experience an E15 alarm, which can indicate an undervoltage condition. This issue is often associated with components such as optocouplers, power resistors, and electrolytic capacitors.
Repair Approach
Our typical repair process includes replacing defective optocouplers, capacitors, and power resistors as needed. We may also replace aluminum electrolytic capacitors as a preventative measure to improve reliability. Missing screws on input/output terminals are also replaced to restore mechanical integrity.
Testing & Quality
After repairs, units undergo diagnostic testing using specialized equipment to verify that issues have been addressed. Repairs that pass our internal testing may then proceed to final testing and verification by the customer.
Service and repair your broken Daikin part
We can repair your Daikin model PMCAE50A2-10 in our facility. Let our skilled technicians get your Daikin back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
