Repair
Repair Price: $ 564.00
Purchase
CSL Part Number: 74135

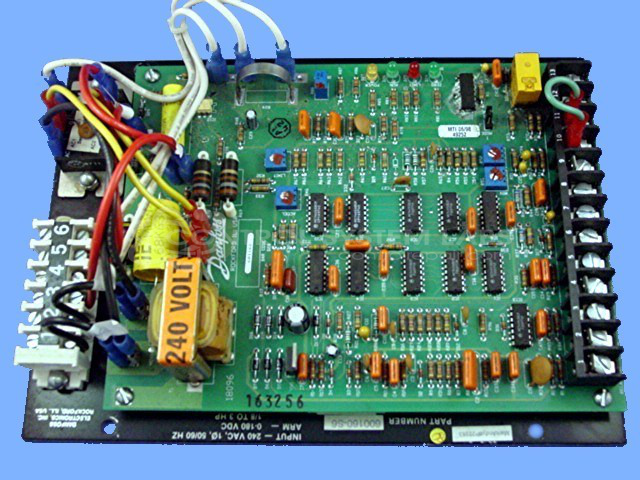

Product Overview: The Danfoss VariSpeed 600 (model 600160-S6) is a DC motor speed control designed to regulate 1/8 to 3 horsepower DC motors operating on 240VAC input. It provides variable speed control for industrial applications including flexographic printing equipment such as Mark Andy 800 Series machines. The controller features adjustable speed reference and output voltage regulation for precise motor control in web handling and converting operations.
Category: DC Motor Controls
Manufacturer: Danfoss
Alternate Manufacturer Names: HAMPTON PDS
Manufacturer Part Number: 600160-S6
Series: VariSpeed 600
Other Synonyms: HAMPTON PDS
Common Failures
This unit may experience intermittent issues that affect speed regulation. In some cases, the card functions correctly initially, but over time, speed may increase and decrease without warning. This fluctuation can lead to mechanical stress on attached equipment. Through evaluation and testing, CSL determined that the issue originated from the card itself.
Repair Approach
CSL identified a defective component that caused variations in motor output voltage. The faulty component was replaced, and testing was conducted to verify stability. The card was operated under varied conditions to replicate the issue and confirm the repair.
Testing & Quality
After replacing the defective component, the card underwent testing with multiple periods of continuous operation. No recurrence of the voltage fluctuation issue was observed during testing. The unit was verified to meet CSL quality standards before being returned.
Service and repair your broken Danfoss part
We can repair your Danfoss model 600160-S6 in our facility. Let our skilled technicians get your Danfoss back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
