Repair
Repair Price: $ 400.00
Purchase
CSL Part Number: 4964

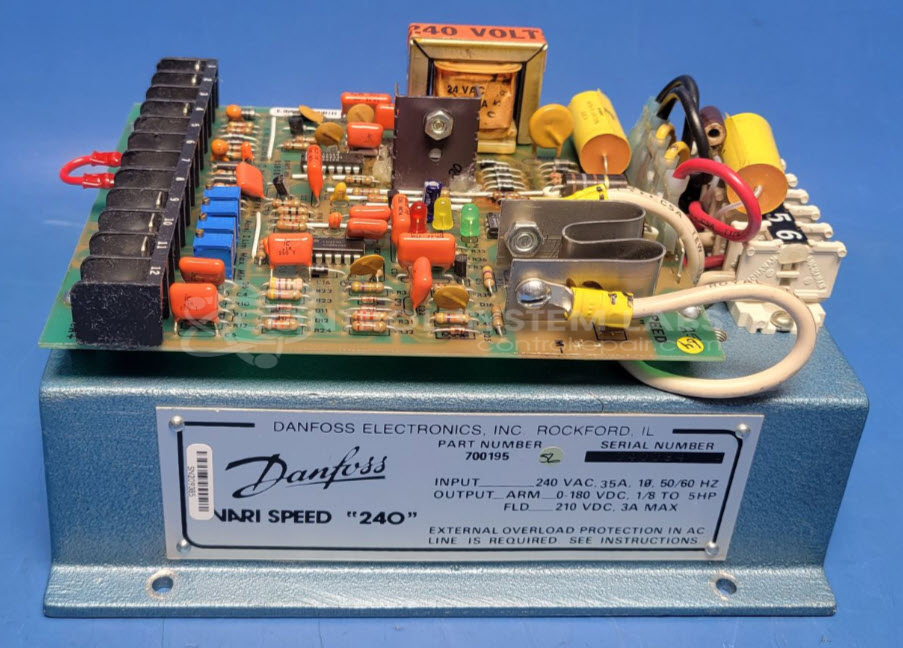

Product Overview: The Danfoss VariSpeed 240 (Model 700195) is a DC motor speed controller designed for permanent magnet and shunt wound motors from 1/8 to 5 horsepower at 240 VAC input. It provides variable speed control for industrial automation equipment including material handling systems, packaging machinery, and conveyor applications. The unit features adjustable output voltage (0-180 VDC) to the motor armature, jog and run functions, and tachometer feedback capability for closed-loop speed regulation.
Category: DC Motor Controls
Manufacturer: Danfoss
Manufacturer Part Number: 700195
Series: VariSpeed 240
Common Failures
Frequent issues include no voltage output and motors not spinning. These problems often stem from defective components such as capacitors, resistors, bridge rectifiers, and operational amplifiers.
Repair Approach
Repairs typically involve replacing faulty capacitors, resistors, and other electrical components. Resoldering connections is common due to poor solder joints. Circuit board trace repairs are occasionally needed when physical damage is identified.
Testing & Quality
Units undergo extensive testing, including burn-in tests with motors to verify proper operation. Testing confirms voltage outputs and motor performance. Repairs are completed to meet our quality standards, with co-checks by technicians to confirm resolution of identified issues.
Service and repair your broken Danfoss part
We can repair your Danfoss model 700195 in our facility. Let our skilled technicians get your Danfoss back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
