Repair Price: $ 944.00
Purchase
CSL Part Number: 119685

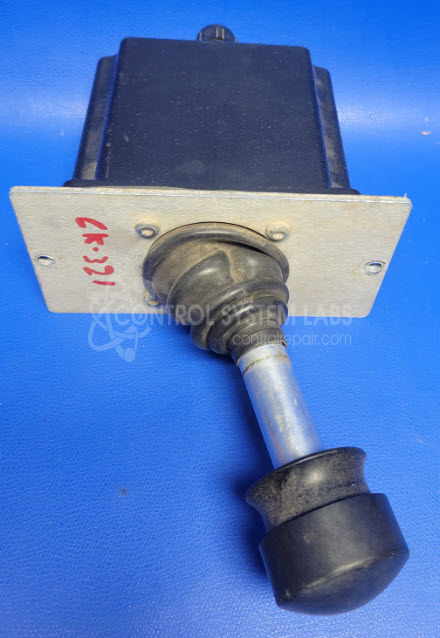

Product Overview: The Danfoss MCH22BM1101 is a control handle from the MCH Series joystick line used for proportional control in mobile hydraulic and industrial machinery applications. It features integrated microswitches and a potentiometer for precise directional input and function selection. Commonly found in construction equipment, material handling vehicles, and heavy machinery, it provides operators with multi-axis control for functions like boom movement, bucket operation, and vehicle steering.
Category: Joystick / Controller
Manufacturer: Danfoss

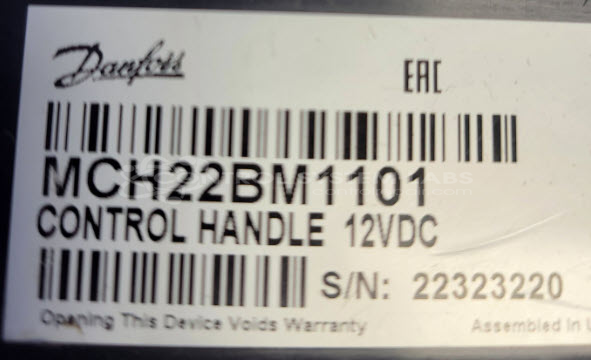

Manufacturer Part Number: MCH22BM1101
Series: MCH Series Joystick - Control Handle
Some repair parts take 2 weeks plus delivery to receive.
Common Failures
For the Danfoss MCH22BM1101 joystick, common issues include erratic potentiometer behavior and micro switch misalignment or malfunction. Proper seating of the boot and securing of terminal components may also be required.
Repair Approach
The repair process typically involves adjusting micro switches and verifying potentiometer function. When mechanical components such as terminal strip screws are missing or loose, they are replaced or secured to restore functionality. Proper reseating of the boot is also performed as needed.
Service and repair your broken Danfoss part
We can repair your Danfoss model MCH22BM1101 in our facility. Let our skilled technicians get your Danfoss back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
