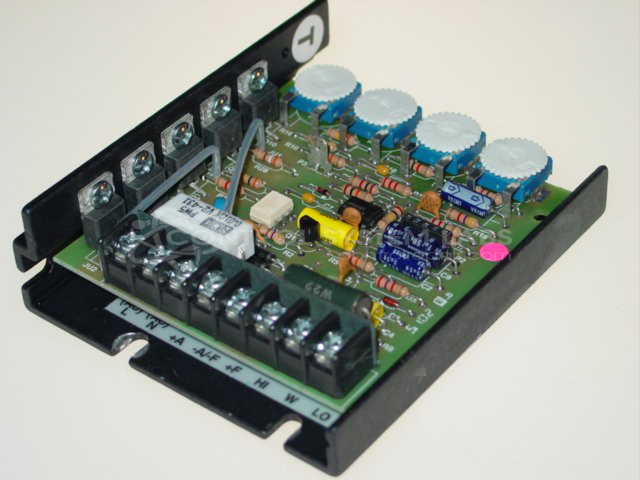

Dart Controls 125DV-C Open Frame FHP DC Motor Control

Repair

Repair Price: $ 320.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/30815/image_1920?unique=46a5f75
  • Condition

Purchase Price: $ 0.00 $ 0.00 320.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 11423
Product Overview: An open-frame fractional horsepower DC motor control that regulates the speed of permanent magnet and shunt-wound DC motors via SCR armature output. Operating from 115/230 VAC input, it provides adjustable speed control for conveyors, pumps, and small industrial drive equipment.
Category: DC Motor Controls
Manufacturer: Dart Controls
Manufacturer Part Number: 125DV-C

Common Failures

Reported issues have included no armature output, no motor control, inconsistent output after warming up, and voltage spikes to the motor during power up. These symptoms often lead to investigation and repairs related to certain components.

Repair Approach

Repair efforts may involve replacing key components such as opto-isolators, zener diodes, SCRs, and capacitors. Common repairs can include resoldering connections, replacing faulty diodes, and updating insulators between terminal blocks. Units are typically cleaned, adjusted, and verified for functionality following component replacements.

Testing & Quality

All repaired products undergo thorough testing to confirm proper operation. Typical procedures include 30-minute to 1-hour burn-in tests at various voltages, ensuring that units function as designed before return to service. In some cases, prolonged burn-in periods and varying voltage conditions are used to verify reliability.

Service and repair your broken Dart Controls part


We can repair your Dart Controls model 125DV-C in our facility. Let our skilled technicians get your Dart Controls back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
