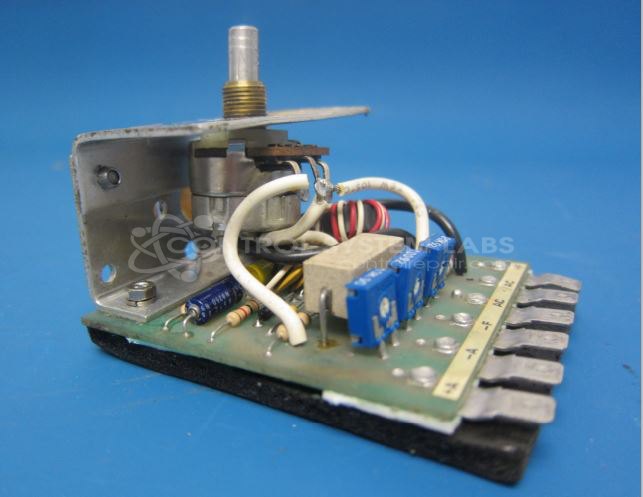

Dart Controls 15DC SERIES Motor
Repair
Repair Price: $ 344.00
Purchase
CSL Part Number: 1026
Category: DC Motor Controls
Manufacturer: Dart Controls
Manufacturer Part Number: 15DC SERIES
Common Failures
There are two primary issues reported: a burned circuit board and a faulty switch. The burned board may result in damage to components, while the switch failure impacts operational control.
Repair Approach
To address the burned board issue, damaged diodes and burned traces are replaced and repaired, ensuring proper soldering and mounting. For the switch problem, the potentiometer controlling the switch mechanism is replaced, restoring functionality.
Testing & Quality
Both repairs undergo extensive testing. The burned board is subjected to a 4-hour burn-in test using a motor and an overnight light bulb test. The repaired switch is verified through functional testing and a 6-hour motor burn-in to ensure reliable operation.
Service and repair your broken Dart Controls part
We can repair your Dart Controls model 15DC SERIES in our facility. Let our skilled technicians get your Dart Controls back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
