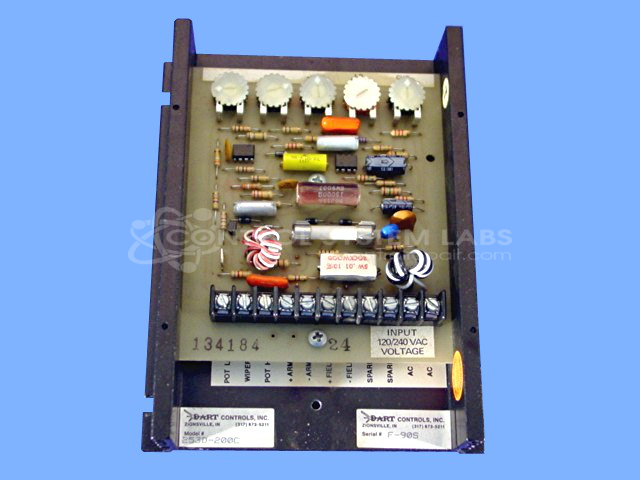

Dart Controls 253D-200C 1HP DC Drive / Open Chassis

Repair

Repair Price: $ 320.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/31012/image_1920?unique=38d8116
  • Condition

Purchase Price: $ 0.00 $ 0.00 320.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 11624
Product Overview: An open-chassis variable-speed DC motor control rated for 1 HP, regulating speed and torque of permanent magnet and shunt-wound DC motors with up to 90V armature output. Used in conveyors, pumps, fans, and general industrial machinery requiring adjustable DC drive control.
Category: DC Motor Controls
Manufacturer: Dart Controls
Manufacturer Part Number: 253D-200C

Common Failures

Some common issues identified include open resistors, poor solder joints, and defective capacitors. Symptoms of these issues can manifest in malfunctioning or unstable operations.

Repair Approach

The resolution typically involves replacing faulty capacitors and resistors, resoldering connections to ensure proper electrical contact, and cleaning the board. In certain cases, adjustments to output levels and motor outputs are performed to restore functionality.

Testing & Quality

All repairs undergo thorough testing post-repair. This includes verifying power supply outputs, performing extended operational tests, and ensuring all joints are secure.

Service and repair your broken Dart Controls part


We can repair your Dart Controls model 253D-200C in our facility. Let our skilled technicians get your Dart Controls back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
