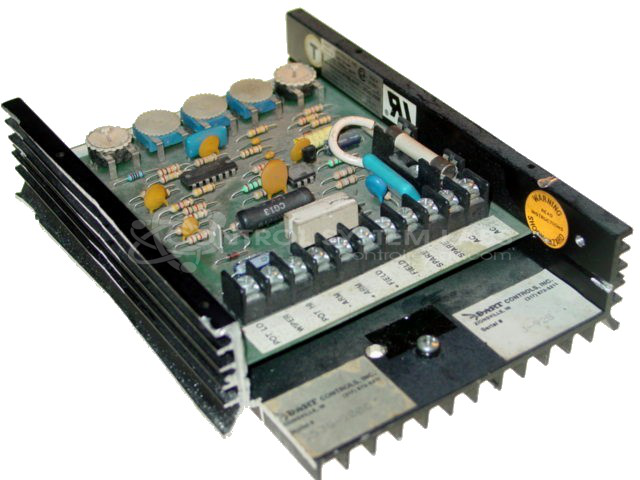

Dart Controls 253G-200C 1HP DC Drive Open Frame
Repair
Repair Price: $ 356.00
Purchase
CSL Part Number: 11623
Product Overview: An open-frame, single-horsepower DC motor speed control that converts AC line input into adjustable DC output to drive permanent magnet and shunt-wound DC motors. Supports 115/230 VAC input with up to 90/180 VDC output and adjustable min/max speed, acceleration, IR compensation, and current limit.
Category: DC Motor Controls
Manufacturer: Dart Controls
Manufacturer Part Number: 253G-200C
Common Failures
Common issues include faulty capacitors, blown fuses, and malfunctioning optoisolators. Reports also indicate shorted diodes and damaged resistors. These failures can result in symptoms such as no output, malfunctioning controls, or power supply issues.
Repair Approach
Repairs often involve replacing defective components such as capacitors, diodes, fuses, and optoisolators. Solder joints are frequently resoldered, and output settings adjusted to support proper operation. Specific parts such as the 90VDC motor or control components may be tested and verified through operational checks.
Testing & Quality
Post-repair testing includes functionality verification through burn-in tests ranging from 30 minutes to 8 hours. Outputs are verified at various voltage settings, and components are inspected to confirm proper operation. Repairs conclude with cleaning and comprehensive functionality assessments.
Service and repair your broken Dart Controls part
We can repair your Dart Controls model 253G-200C in our facility. Let our skilled technicians get your Dart Controls back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
