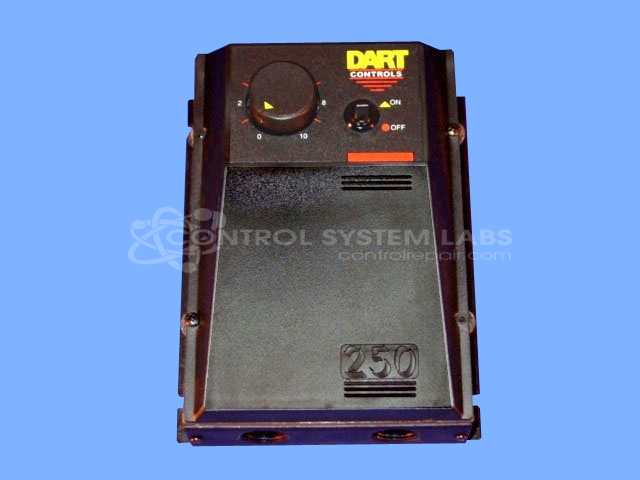

Dart Controls 253G-200E 2HP DC Drive Enclosed
Repair
Repair Price: $ 364.00
Purchase
CSL Part Number: 11635
Category: DC Motor Controls
Manufacturer: Dart Controls
Manufacturer Part Number: 253G-200E
Also Known As(AKA): DAYTON
Common Failures
Frequent issues with this product include blown fuses, malfunctioning speed potentiometers, unsatisfactory motor control at low speeds, and shorted diodes. Some units also experience faulty operational amplifiers and optocouplers, as well as cold solder joints that compromise performance.
Repair Approach
Repairs commonly involve replacing defective components such as fuses, potentiometers, integrated circuits, diodes, and capacitors. For instance, resolving blown fuse issues typically involves checking and replacing associated diodes and verifying solder connections. In cases of poor motor control, replacing potentiometers and resoldering joints may alleviate the problems. Thorough cleaning and resoldering of connections are standard practices to restore functionality.
Testing & Quality Assurance
Post-repair testing includes operation verification with appropriate motors, voltage adjustments, and extended burn-in periods, typically ranging from 30 minutes to 8 hours, to verify the unit functions as intended. Quality control checks are performed throughout the repair and testing process.
Service and repair your broken Dart Controls part
We can repair your Dart Controls model 253G-200E in our facility. Let our skilled technicians get your Dart Controls back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
