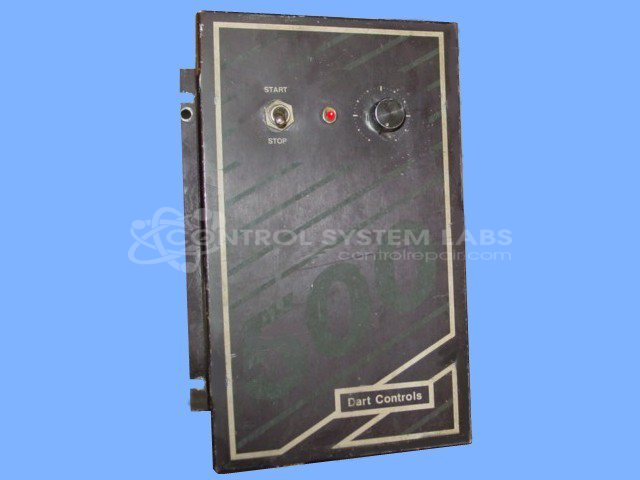

Dart Controls 520-100RC 500 DC Motor 1 HP

Repair

Repair Price: $ 388.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/31196/image_1920?unique=4d16e2c
  • Condition

Purchase Price: $ 0.00 $ 0.00 388.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 11812
Product Overview: Enclosed-chassis DC motor speed control rated for 1 HP, regulating armature voltage to adjust and maintain DC motor speed in industrial equipment. Features an armature relay base, adjustable output potentiometer, and fused protection, delivering variable DC output up to approximately 140–180 VDC for drive motors.
Category: DC Motor Controls
Manufacturer: Dart Controls
Manufacturer Part Number: 520-100RC
Series: 500 Control Series

Common Failures

Common issues with this product include broken solder joints, open resistors, missing terminal screws, and relay contacts not closing completely. These issues may result in the unit shutting down unexpectedly or failing to supply the correct DC voltage to the drive motor.

Repair Approach

Repairs typically involve resoldering various parts of the circuit board and replacing faulty components such as resistors, terminal screws, fuses, and relays. In some cases, broken traces are repaired, and replacement of specific integrated circuits and other components may be necessary.

Testing & Quality

Post-repair, units are tested to verify operational capability. This includes verifying appropriate voltage outputs, running the unit with a motor, and ensuring relay contacts operate correctly. Each unit is cleaned and validated before return.

Service and repair your broken Dart Controls part


We can repair your Dart Controls model 520-100RC in our facility. Let our skilled technicians get your Dart Controls back in operation quickly.
