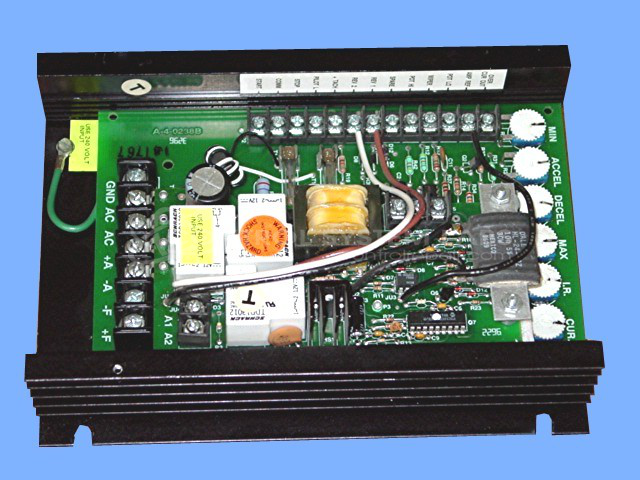

Dart Controls 520-200C-38M DC Drive In: 240 VAC, Out: 1/4-2 HP 180 VDC
Repair
Repair Price: $ 392.00
Purchase
CSL Part Number: 49362
Product Overview: A variable-speed DC motor control that converts 240 VAC input into adjustable 180 VDC armature output for permanent magnet and shunt-wound motors from 1/4 to 2 HP. Enclosed chassis design with armature relay base, used in conveyors, pumps, and machinery requiring precise speed regulation.
Category: DC Motor Controls
Manufacturer: Dart Controls
Manufacturer Part Number: 520-200C-38M
Series: 500 Control Series
Common Failures
This product may experience issues such as component failures, damaged circuit traces, and incorrect fuse types. These symptoms can lead to performance inconsistency and operational failures.
Repair Approach
Repairs typically involve replacing damaged components including diodes, fuses, and capacitors. Additionally, repairing damaged traces and ensuring connections are properly soldered may be required. We evaluate each unit individually to determine the appropriate repair approach.
Testing & Quality
After repairs, comprehensive cleaning and testing are performed to verify the product meets output specifications. Adjustments may be made to calibrate the product to the required voltage output.
Service and repair your broken Dart Controls part
We can repair your Dart Controls model 520-200C-38M in our facility. Let our skilled technicians get your Dart Controls back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
