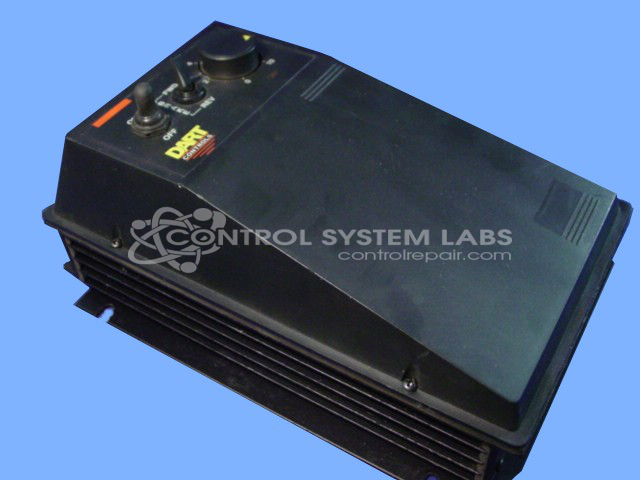

Dart Controls 530BRE-36MA 530B Enclosed DC Drive

Repair

Repair Price: $ 360.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/53163/image_1920?unique=2928020
  • Condition

Purchase Price: $ 0.00 $ 0.00 360.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 34461
Product Overview: An enclosed DC motor speed control that regulates the speed of permanent magnet and shunt-wound DC motors, providing forward and reverse operation with adjustable 90-volt output. Rated for 1/8 to 1.5 HP and 1/4 to 3 HP motors, it is used in industrial machinery and conveyor applications.
Category: DC Motor Controls
Manufacturer: Dart Controls
Manufacturer Part Number: 530BRE-36MA
Series: 530B Control Series

Common Failures

Issues reported with this product have included defective components such as capacitors, transformers, and speed controls. Problems often involve incorrect installation or aging parts. Symptoms reported have included malfunctioning control systems, erratic speed regulation, and overloading motors, sometimes due to broken solder joints or burnt-out components.

Repair Approach

Typical repairs have involved replacing faulty capacitors, transformers, and integrated circuits. Repairs often require resoldering joints, cleaning control boards, and reinforcing electrical traces to ensure stable connections. Preventative replacement of certain components, such as small capacitors, may be recommended to reduce the likelihood of future issues.

Testing & Quality

Units are tested to validate repairs. Testing generally involves running the systems with appropriate voltage outputs for set durations to verify reliable operation. The final step includes cleaning the control units and adjusting outputs to specification before the units are prepared for return.

Service and repair your broken Dart Controls part


We can repair your Dart Controls model 530BRE-36MA in our facility. Let our skilled technicians get your Dart Controls back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
