Repair
Repair Price: $ 456.00
Purchase
CSL Part Number: 33671

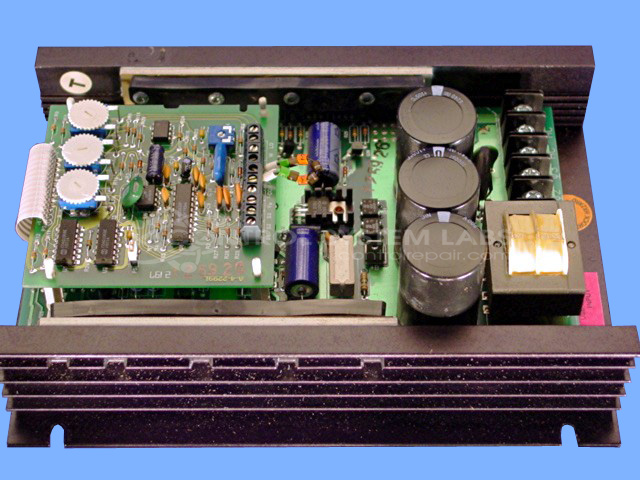

Product Overview: The Dart Controls 716BDC is a brushless DC motor drive designed to control the speed and operation of brushless DC motors in industrial applications. It operates on 120 VAC input power and provides regulated output to three-phase brushless motors using Hall effect sensor feedback for commutation. Common applications include paper handling equipment, conveyors, and other industrial machinery requiring precise variable speed control. This model is now obsolete with no direct factory replacement available.
Category: DC Motor Controls
Manufacturer: Dart Controls
Manufacturer Part Number: 716BDC
Common Failures
This product may experience failures related to components such as transistors, FETs, and capacitors. Issues observed in some units have included short circuits and damage from arcing. In certain cases, mechanical concerns such as improperly secured heatsink mounts or damaged thermal insulators have been identified during evaluation.
Repair Approach
The repair process typically involves replacing defective components, resoldering connections as needed, and restoring mechanical integrity. Additional concerns such as poor solder joints or damaged heatsink supports are addressed during repair. Burnt areas are cleaned where applicable, and thermal insulators are replaced to support proper operation.
Testing & Quality
Components including capacitors, diodes, transistors, and FETs are checked using diagnostic equipment to verify proper function. The item is reviewed by quality personnel to ensure repair standards are met.
Service and repair your broken Dart Controls part
We can repair your Dart Controls model 716BDC in our facility. Let our skilled technicians get your Dart Controls back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
