Repair
Repair Price: $ 1,140.00
Purchase
CSL Part Number: 23844

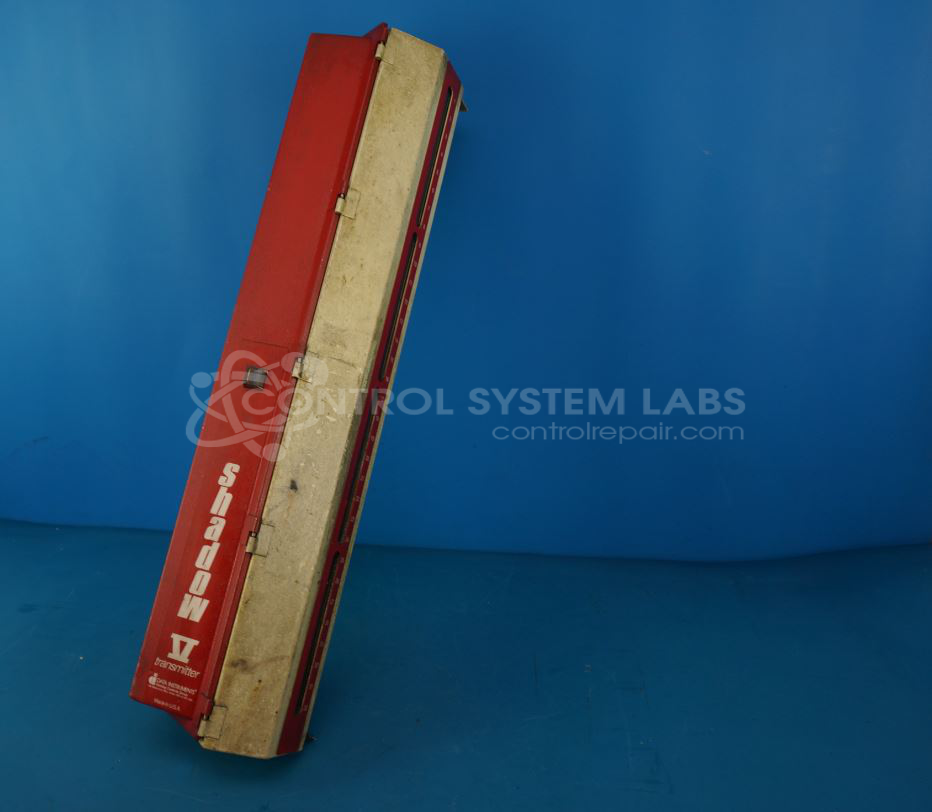

Product Overview: The transmitter half of a safety light curtain system, emitting an infrared beam array detected by a paired receiver to create a protective sensing field. Used for machine guarding and personnel protection on industrial equipment such as presses and automated machinery. Operates on 24V DC.
Category: Light Curtain
Manufacturer: Data Instruments Inc.
Manufacturer Synonyms: Honeywell
Manufacturer Part Number: 24TX
Also Known As(AKA): SICK (WINTRESS)
We need the transmitter, receiver, controller and interconnecting cables in order to test and repair.
Common Failures
Units may experience issues with capacitors and other components becoming detached from the circuit board. A missing jumper has been identified as a contributing factor in some control problems.
Repair Approach
Repairs typically involve installing a jumper on specified locations of the circuit board. Components that are damaged or detached are replaced as needed to restore functionality. These actions address the reported issues and reinforce the integrity of the connections on the board.
Testing & Quality
After repairs, units are tested using a shadow light receiver to verify proper operation. Testing confirms that the repair work has been completed and the unit functions as expected.
Repair your broken Data Instruments Inc. part
We can repair your Data Instruments Inc. model 24TX .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
