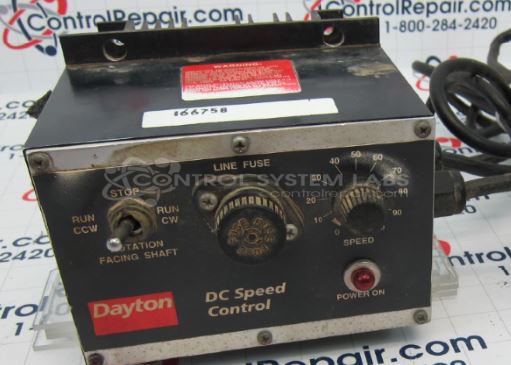

Dayton 1F804 2HP DC Motor Control with Reversing

Repair

Repair Price: $ 712.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/85943/image_1920?unique=05e1be5
  • Condition

Purchase Price: $ 0.00 $ 0.00 712.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 75588
Product Overview: A variable-speed DC motor controller rated for 2 horsepower with forward/reverse capability. Operating at 230 VAC, it regulates the speed and direction of DC motors in industrial machinery and automated equipment, using a hesitation switch for directional control.
Category: DC Motor Controls
Manufacturer: Dayton
Manufacturer Part Number: 1F804
Also Known As(AKA): GRAINGER

Common Failures

This product has experienced issues with failed toggle switches and shorted diodes. These problems may occur due to component wear or electrical stress during operation.

Repair Approach

Our team evaluates each unit to identify the specific failure mode. Typical repairs may include replacing failed switches, replacing shorted diodes, and repairing damaged circuit traces. We use quality replacement components appropriate for the application.

Testing & Quality

Following repair, we verify that the unit operates correctly at the specified voltage of 230 VAC. Testing confirms that the repair has addressed the identified failure and that the product meets functional requirements.

Service and repair your broken Dayton part


We can repair your Dayton model 1F804 in our facility. Let our skilled technicians get your Dayton back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
