CSL Part Number: 74922

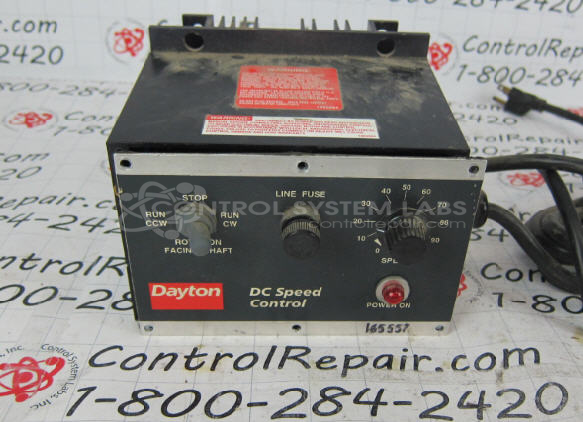

Product Overview: The Dayton 2Z846D is a 0.75 HP variable speed DC motor drive designed to control DC motor speed in industrial applications. It regulates motor speed through SCR-based control circuitry, providing adjustable DC voltage output up to 90VDC. This drive is typically used in paper handling equipment and light industrial machinery requiring precise speed control. The unit operates from AC line voltage and includes protective fusing. It is sold without an integrated motor and must be paired with a compatible DC motor for operation.
Category: DC Motor Controls
Manufacturer: Dayton
Manufacturer Part Number: 2Z846D
Common Failures
This product may encounter issues with the speed control unit not providing power to the motor. Potential causes can include defective components, such as shorted diodes in the drive circuit.
Repair Approach
The repair process involves checking capacitors, silicon-controlled rectifiers (SCRs), and diodes. Resistor values in the drive circuit are also evaluated. Missing or defective fuses are replaced with appropriate fast-acting fuses.
Testing & Quality
Post-repair, the unit undergoes testing by running with a motor while monitoring the output waveform. Adjustments are made to ensure the output is correctly set to 90VDC.
Service and repair your broken Dayton part
We can repair your Dayton model 2Z846D in our facility. Let our skilled technicians get your Dayton back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
