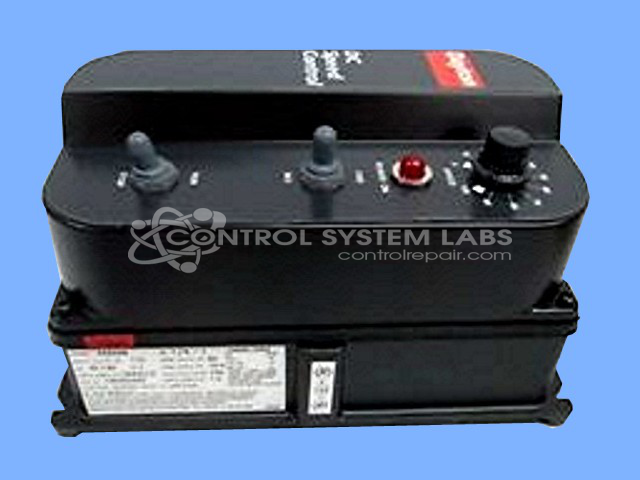

Dayton 4Z377D 1/3 to 2 HP 230V SCR DC Motor Drive
Repair
Repair Price: $ 388.00
Purchase
CSL Part Number: 72548
Product Overview: A variable-speed SCR DC motor drive that controls the speed and direction of permanent magnet and shunt-wound DC motors rated from 1/3 to 2 HP on 230V single-phase input. Commonly used in conveyors, pumps, and general industrial machinery requiring adjustable speed control.
Category: DC Motor Controls
Manufacturer: Dayton
Manufacturer Part Number: 4Z377D
Common Failures
Common failures reported for this product include control problems due to shorted components, issues caused by incorrect wiring of the RUN/STOP switch, and damage to the speed control knob. Additionally, dirty units may affect performance.
Repair Approach
Repairs typically involve cleaning the unit, replacing defective components, correcting wiring issues, and reinstalling switches as needed. The repair process addresses aspects contributing to the operational problems.
Testing & Quality
Each repaired unit undergoes testing to verify the performance of DC supplies and overall operation. Units are generally subject to a burn-in test for a duration ranging from one to four hours to confirm reliability and functionality.
Service and repair your broken Dayton part
We can repair your Dayton model 4Z377D in our facility. Let our skilled technicians get your Dayton back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
