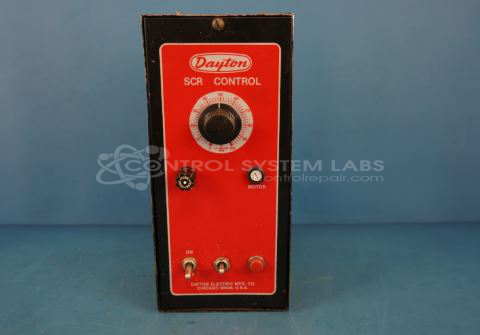

Dayton 5X485 DC Motor Drive 1/8 HP to 1 HP Stop Start Control

Repair

Repair Price: $ 400.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/20946/image_1920?unique=94f8942
  • Condition

Purchase Price: $ 0.00 $ 0.00 400.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 1047
Category: DC Motor Controls
Manufacturer: Dayton
Manufacturer Part Number: 5X485

NEMA 4/12 DC Drive 120/240VAC 90-180 Vdc

Common Failures

Common issues reported include blown fuses, incorrect output voltage, and damaged or misconfigured components such as fuseholders, potentiometers, and diodes. Other frequent problems involve defective solder joints, aging or damaged capacitors, and faulty wiring. Vibration sensitivity has also been noted as a contributing issue.

Repair Approach

Repairs often involve replacing damaged components such as capacitors, fuses, and potentiometers, correcting defective solder connections, and repairing burnt traces on circuit boards. Components are cleaned and re-soldered to ensure proper connectivity. In some cases, faulty wiring is restored to its correct configuration, and potentiometers are cleaned or adjusted. Units are tested under load to verify repairs.

Testing & Quality

Post-repair testing typically involves burn-in periods ranging from 30 minutes to 4 hours. During these tests, units are monitored for correct operation under load conditions. Repairs are finalized once the units pass diagnostic checks and demonstrate expected functionality.

Service and repair your broken Dayton part


We can repair your Dayton model 5X485 in our facility. Let our skilled technicians get your Dayton back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
