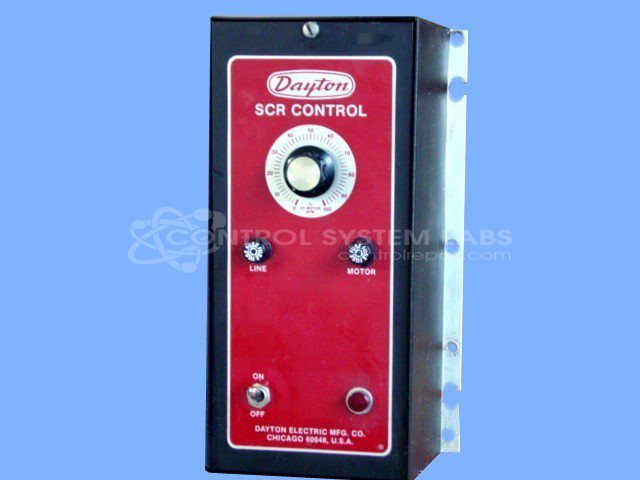

Dayton 5X485B DC Motor Drive 90V or 180V DC Output
Repair
Repair Price: $ 400.00
Purchase
CSL Part Number: 25544
Product Overview: A variable-speed DC motor drive providing 90V or 180V DC output to control permanent magnet or shunt-wound motors rated 1/8 HP to 1 HP. Includes integrated stop/start control for regulating motor speed in industrial machinery and conveyor applications.
Category: DC Motor Controls
Manufacturer: Dayton
Manufacturer Part Number: 5X485B
Common Failures
One frequently reported issue with this product is the absence of output voltage due to faults in the DC supply circuitry.
Repair Approach
For cases involving no output voltage, the repair process involves identifying and replacing the affected internal components to address faults in the DC supply circuitry. This approach is intended to restore functionality of the output voltage.
Testing & Quality
Post-repair, the unit is verified for proper DC supply operation and undergoes an extended testing period to confirm that the unit functions correctly.
Service and repair your broken Dayton part
We can repair your Dayton model 5X485B in our facility. Let our skilled technicians get your Dayton back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
