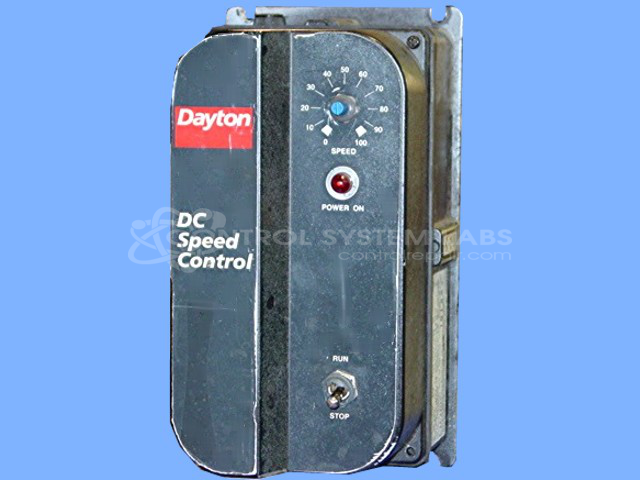

Dayton 5X485C Variable Speed DC Drive for Fractional HP Motors

Repair

Repair Price: $ 420.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/44538/image_1920?unique=138933d
  • Condition

Purchase Price: $ 0.00 $ 0.00 420.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 25545
Product Overview: A variable speed DC motor control for fractional horsepower motors rated 1/8 HP to 1 HP, providing adjustable speed regulation with a 90V DC output. It features start/stop control, a speed potentiometer, and indicator light for driving small DC motors in industrial equipment.
Category: DC Motor Controls
Manufacturer: Dayton
Manufacturer Part Number: 5X485C

Common Failures

Several common failure symptoms have been observed for this product, including units that fail to start, worn speed potentiometers, and failed components such as diodes and capacitors. Additional issues include wiring faults and faulty switches or indicator lights.

Repair Approach

Repairs typically involve replacing damaged components such as speed potentiometers, diodes, switches, and fuses. Wiring corrections may also be performed to restore correct operation. Testing and verification are conducted after component replacements.

Testing & Quality Assurance

Each repaired unit undergoes testing, which may include burn-in testing and operational verification. Units are inspected and tested to confirm functionality before the repair process is complete.

Service and repair your broken Dayton part


We can repair your Dayton model 5X485C in our facility. Let our skilled technicians get your Dayton back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
