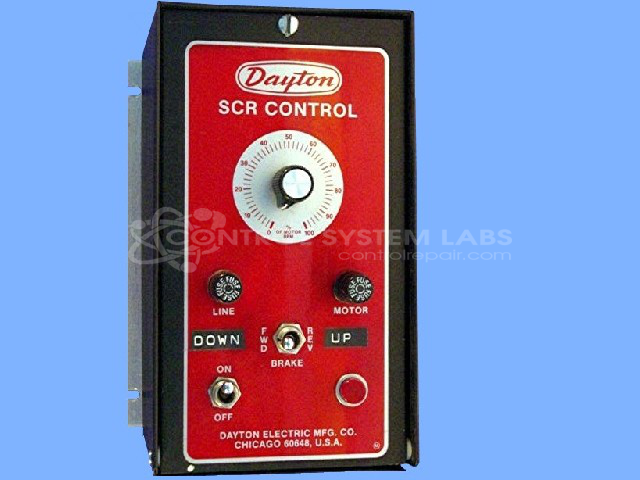

Dayton 6X165D 90/180 Volt Variable Speed DC Drive 1/50 -1/4 HP
Repair
Repair Price: $ 352.00
Purchase
CSL Part Number: 19220
Category: DC Motor Controls
Manufacturer: Dayton
Alternate Manufacturer Names: Grainger
Manufacturer Part Number: 6X165D
Series: 6X165 Variable Speed DC Drives
Other Synonyms: Grainger
Common Failures
This product may experience issues such as missing gate signals, shorted outputs, power surges, damaged wiring, and breakdowns of small signal transistors and capacitors.
Repair Approach
Repairs may involve resoldering connections, replacing shorted or damaged components such as SCRs and transistors, installing missing switches, and replacing capacitors as needed. Additionally, insulation paper may be added between the case and transformer where appropriate.
Testing & Quality
After repairs, units are cleaned and tested under load conditions. Tests may include attaching equipment to a motor and conducting burn-in periods to verify performance and adherence to output specifications.
Service and repair your broken Dayton part
We can repair your Dayton model 6X165D in our facility. Let our skilled technicians get your Dayton back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
