CSL Part Number: 110797

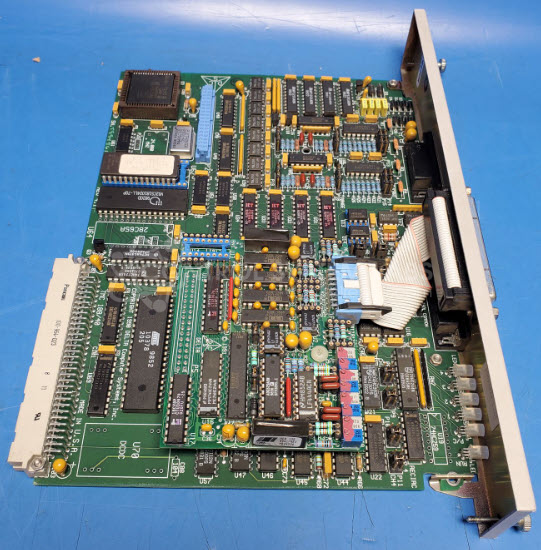

Product Overview: The TMC188/40-TA is a four-axis motion and pressure control module designed for installation in SIMATIC TI 505 PLCs. Manufactured by Delta Computer Systems, it interfaces with Temposonic magnetostrictive linear position sensors to provide closed-loop control of hydraulic or pneumatic actuators. The module features dedicated sensor input circuitry, onboard DC/DC converters, and programmable EPROM for motion control algorithms. It is commonly used in industrial machinery requiring precise multi-axis positioning and pressure regulation, such as injection molding machines, presses, and automated material handling systems.
Category: Computer Items
Manufacturer: Delta Computer Systems
Manufacturer Part Number: TMC188/40-TA
Series: Simatic TI505 PLC
Designed for use in a SIMATIC TI 505 PLC
Common Failures
This product may experience issues with reading inputs due to damaged resistors on the main board. Additionally, failures can occur in the DC/DC converters on the add-on card. A defective EEPROM chip has also been observed in some cases.
Repair Approach
Our team can evaluate the unit and provide a quotation before any repair work begins. Repairs may involve verifying and replacing damaged resistors and faulty DC/DC converters. If the EEPROM is found to be defective during evaluation, we will contact you to discuss available options, which may include referral to the original equipment manufacturer. Any applicable evaluation or handling charges will be communicated before proceeding.
Testing & Quality
Testing includes power-up verification and component-level testing. We recommend that customers inspect their transducer and wiring for defects before reconnecting the module, as external issues could impact performance. Our repairs focus on restoring functionality based on the findings from our evaluation process.
Limited Repair
The Delta Computer Systems part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Delta Computer Systems part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
