Repair
Repair Price: $ 344.00
Purchase
CSL Part Number: 83069

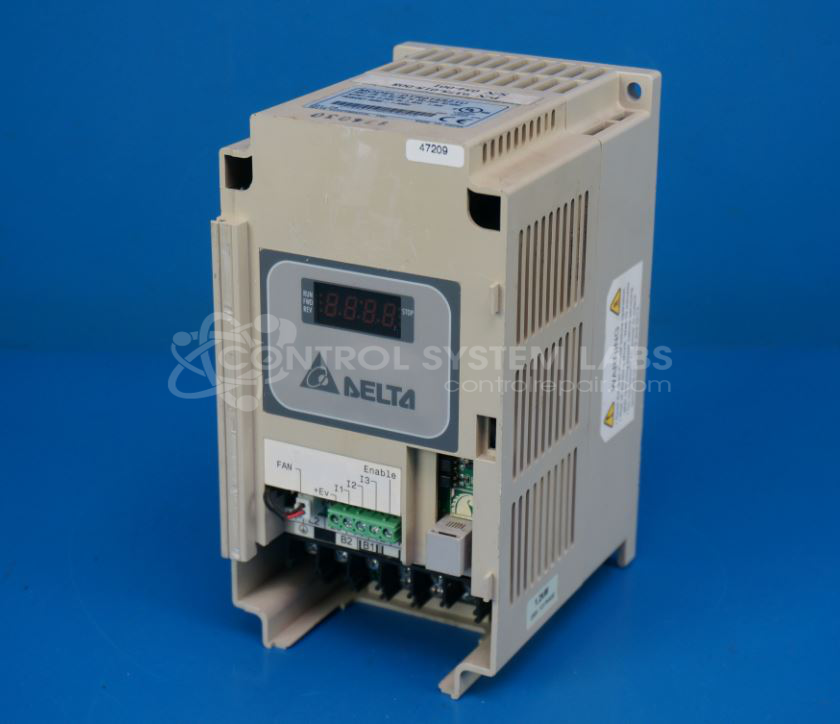

Product Overview: The Delta Electronics DTR015S21U is a variable frequency drive (VFD) used to control AC motor speed and torque in industrial applications. It features a three-phase converter/chopper/IGBT inverter module rated at 600V and 40A, making it suitable for paper processing equipment and other machinery requiring precise motor control. The drive operates on single-phase or three-phase input power and includes inrush current limiting, electrolytic filter capacitors, and relay-based protection circuits. It has a basic LED display for status monitoring but limited onboard programming capability.
Category: Power Controls
Manufacturer: Delta Electronics
Manufacturer Part Number: DTR015S21U
Also Known As(AKA): 9375-015-008
Common Failures
Common issues reported include variable frequency drives (VFD) that do not power up. Typical causes include defective components such as IGBT modules and capacitors, as well as poor solder connections and corrosion on connectors.
Repair Approach
Repairs typically involve replacing defective components, including capacitors, relays, and IGBT modules. Repairs may also include cleaning affected areas and addressing corrosion on circuit boards. Proper component alignment and reapplication of heat sink compound are standard steps in the repair process.
Testing & Quality Assurance
Repaired units undergo diagnostic and burn-in testing. Initial power-up tests confirm basic functionality. Further operational tests may be limited depending on available documentation and controls. All repairs are co-checked to maintain quality standards.
Service and repair your broken Delta Electronics part
We can repair your Delta Electronics model DTR015S21U in our facility. Let our skilled technicians get your Delta Electronics back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
