Repair Price: $ 544.00
Purchase
CSL Part Number: 28087

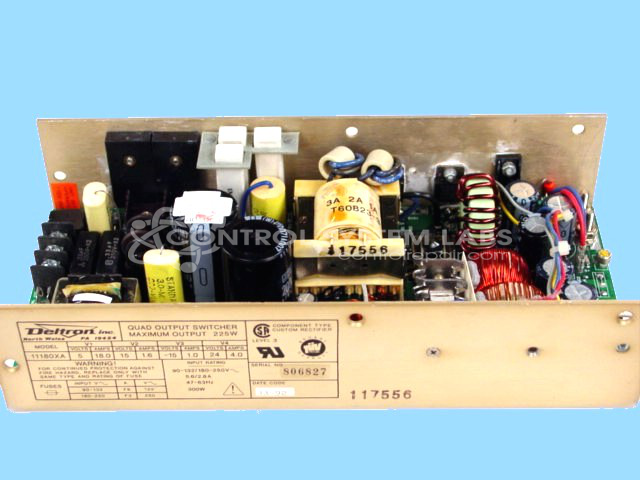

Product Overview: The Deltron 225Watt Quad Industrial Power Supply (model 11589XA) is a multi-output switching power supply providing four isolated DC voltages: +5V, +12V, -12V, and +24V. It operates at approximately 80kHz switching frequency and uses a regulated primary output (+5V) with secondary outputs derived from the main transformer. The unit employs SG3524 PWM control, BJT switching transistors, and operates from rectified AC input (approximately 300VDC bus). Common applications include industrial automation equipment, control systems, and machinery requiring multiple voltage rails for logic, analog, and power circuits.
Category: Power Supply
Manufacturer: Deltron Inc.
Manufacturer Synonyms: AUTOCON TECHNOLOGIES
Manufacturer Part Number: 11589XA
Power supplies are tested with a minimum 4-hour burn-in, under load.
Common Failures
This unit type has experienced issues with low output voltages across several channels, particularly on the 5V, 12V, and 24V outputs. Low voltage output is a common symptom that may present as reduced readings on the 5V and +/-12V outputs, as well as the 24V output.
Repair Approach
Typical repair steps may include replacing capacitors and diodes as needed. In some cases, defective components are identified and replaced. Additional symptoms such as overheating of switching transistors may also be addressed during evaluation and repair.
Testing & Quality
Comprehensive diagnostic testing is performed, including verification of transistor and diode functionality. The primary regulated output is typically the +5V line, with secondary outputs including the +12V, -12V, and +24V lines, which can influence overall performance. Units are tested to ensure outputs meet specification before return.
Service and repair your broken Deltron Inc. part
We can repair your Deltron Inc. model 11589XA in our facility. Let our skilled technicians get your Deltron Inc. back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
